Package eu.webtoolkit.jwt

Class WAggregateProxyModel

java.lang.Object

eu.webtoolkit.jwt.WObject

eu.webtoolkit.jwt.WAbstractItemModel

eu.webtoolkit.jwt.WAbstractProxyModel

eu.webtoolkit.jwt.WAggregateProxyModel

public class WAggregateProxyModel
extends WAbstractProxyModel

A proxy model for JWt's item models that provides column aggregation.

This proxy model does not store data itself, but presents data from a source model, and presents methods to organize columns using aggregation, through which a user may navigate (usually to obtain more detailed results related to a single aggregate quantity).

To use this proxy model, you should provide a source model using setSourceModel(), and define column ranges that can be aggregated using addAggregate().

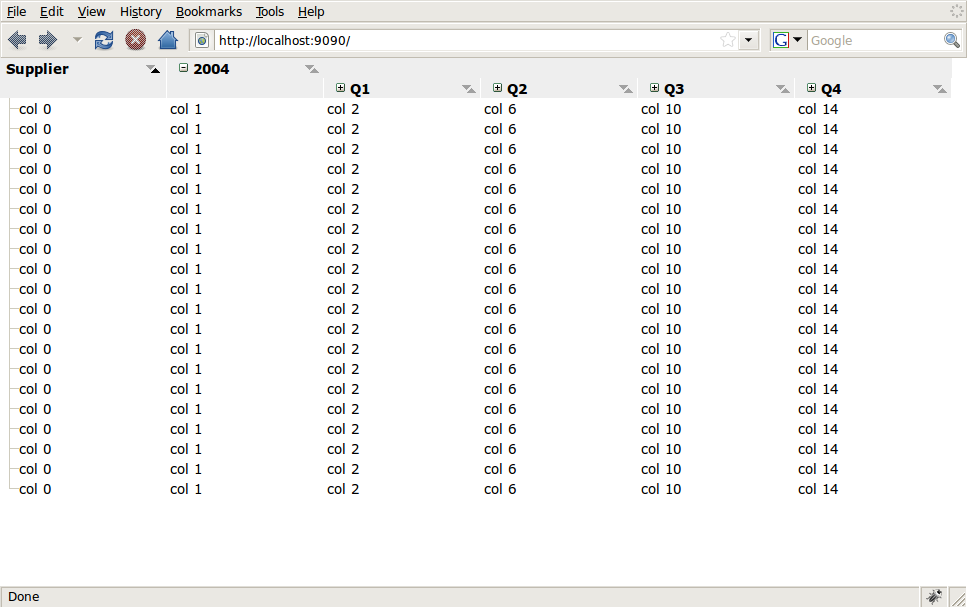

This example would render like this:

A WTreeView using a WAggregateProxyModel

Note: This model does not support dynamic changes to the column definition of the source model (i.e. insertions or deletions of source model columns).

Nested Class Summary

Nested classes/interfaces inherited from class eu.webtoolkit.jwt.WAbstractProxyModel

WAbstractProxyModel.BaseItem

Nested classes/interfaces inherited from class eu.webtoolkit.jwt.WObject

WObject.FormData

Constructor Summary

Constructors

Constructor	Description
WAggregateProxyModel()	Constructor.

Method Summary

Modifier and Type	Method	Description
void	addAggregate(int parentColumn, int firstColumn, int lastColumn)	Adds a new column aggregation definition.
void	collapseColumn(int column)	Collapses a column.
void	expandColumn(int column)	Expands a column.
int	getColumnCount(WModelIndex parent)	Returns the number of columns.
Object	getHeaderData(int section, Orientation orientation, ItemDataRole role)	Returns the row or column header data.
EnumSet<HeaderFlag>	getHeaderFlags(int section, Orientation orientation)	Returns the flags for a header.
WModelIndex	getIndex(int row, int column, WModelIndex parent)	Returns the child index for the given row and column.
WModelIndex	getParent(WModelIndex index)	Returns the parent for a model index.
int	getRowCount(WModelIndex parent)	Returns the number of rows.
WModelIndex	mapFromSource(WModelIndex sourceIndex)	Maps a source model index to the proxy model.
WModelIndex	mapToSource(WModelIndex proxyIndex)	Maps a proxy model index to the source model.
boolean	setHeaderData(int section, Orientation orientation, Object value, ItemDataRole role)	Sets header data for a column or row.
void	setSourceModel(WAbstractItemModel model)	Sets the source model.
void	sort(int column, SortOrder order)	Sorts the model according to a particular column.

Methods inherited from class eu.webtoolkit.jwt.WAbstractProxyModel

createSourceIndex, dropEvent, endShiftModelIndexes, fromRawIndex, getAcceptDropMimeTypes, getData, getFlags, getMimeType, getSourceModel, insertColumns, removeColumns, setData, setItemData, startShiftModelIndexes, toRawIndex

Methods inherited from class eu.webtoolkit.jwt.WAbstractItemModel

beginInsertColumns, beginInsertRows, beginRemoveColumns, beginRemoveRows, columnsAboutToBeInserted, columnsAboutToBeRemoved, columnsInserted, columnsRemoved, copyData, createIndex, createIndex, dataChanged, dropEvent, endInsertColumns, endInsertRows, endRemoveColumns, endRemoveRows, getColumnCount, getData, getData, getData, getData, getHeaderData, getHeaderData, getHeaderFlags, getIndex, getItemData, getRowCount, hasChildren, hasIndex, hasIndex, headerDataChanged, insertColumn, insertColumn, insertColumns, insertRow, insertRow, insertRows, insertRows, layoutAboutToBeChanged, layoutChanged, match, modelReset, removeColumn, removeColumn, removeColumns, removeRow, removeRow, removeRows, removeRows, reset, rowsAboutToBeInserted, rowsAboutToBeRemoved, rowsInserted, rowsRemoved, setData, setData, setData, setData, setHeaderData, setHeaderData, sort

Methods inherited from class eu.webtoolkit.jwt.WObject

getId, getObjectName, remove, setFormData, setObjectName, tr

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

WAggregateProxyModel

public WAggregateProxyModel()

Constructor.

Sets up the proxy without aggregation functionality.

Method Details

addAggregate

public void addAggregate(int parentColumn,
 int firstColumn,
 int lastColumn)

Adds a new column aggregation definition.

The parentColumn is the column index in the source model that acts as an aggregate for columns firstColumn to lastColumn. parentColumn must border the range defined by firstColumn to lastColumn:

 parentColumn == firstColumn - 1 || parentColumn == lastColumn + 1



Note that column parameters reference column indexes in the source model.

Aggregation definitions can be nested, but should be strictly hierarchical.

The aggregate column will initially be collapsed.

Only one aggregate can be defined per parentColumn.

mapFromSource

public WModelIndex mapFromSource(WModelIndex sourceIndex)

Description copied from class: WAbstractProxyModel

Maps a source model index to the proxy model.

This method returns a model index in the proxy model that corresponds to the model index sourceIndex in the source model. This method must only be implemented for source model indexes that are mapped and thus are the result of mapToSource().

Specified by:

mapFromSource in class WAbstractProxyModel

See Also:

• WAbstractProxyModel.mapToSource(WModelIndex proxyIndex)

mapToSource

public WModelIndex mapToSource(WModelIndex proxyIndex)

Description copied from class: WAbstractProxyModel

Maps a proxy model index to the source model.

This method returns a model index in the source model that corresponds to the proxy model index proxyIndex.

Specified by:

mapToSource in class WAbstractProxyModel

See Also:

• WAbstractProxyModel.mapFromSource(WModelIndex sourceIndex)

setSourceModel

public void setSourceModel(WAbstractItemModel model)

Description copied from class: WAbstractProxyModel

Sets the source model.

The source model provides the actual data for the proxy model.

Ownership of the source model is not transferred.

Note that the source model's signals are not forwarded to the proxy model by default, but some specializations, like WBatchEditProxyModel and WSortFilterProxyModel do. If you want to reimplement data() with no changes to row or column indices, consider the use of WIdentityProxyModel.

Overrides:

setSourceModel in class WAbstractProxyModel

expandColumn

public void expandColumn(int column)

Description copied from class: WAbstractItemModel

Expands a column.

Expands a column. This may only be called by a view when the HeaderFlag.ColumnIsCollapsed flag is set.

The default implementation does nothing.

Overrides:

expandColumn in class WAbstractItemModel

See Also:

• WAggregateProxyModel

collapseColumn

public void collapseColumn(int column)

Description copied from class: WAbstractItemModel

Collapses a column.

Collapses a column. This may only be called by a view when the HeaderFlag.ColumnIsExpandedLeft or HeaderFlag.ColumnIsExpandedRight flag is set.

The default implementation does nothing.

Overrides:

collapseColumn in class WAbstractItemModel

See Also:

• WAggregateProxyModel

getColumnCount

public int getColumnCount(WModelIndex parent)

Description copied from class: WAbstractItemModel

Returns the number of columns.

This returns the number of columns at index parent.

Specified by:

getColumnCount in class WAbstractItemModel

See Also:

• WAbstractItemModel.getRowCount(WModelIndex parent)

getRowCount

public int getRowCount(WModelIndex parent)

Description copied from class: WAbstractItemModel

Returns the number of rows.

This returns the number of rows at index parent.

Specified by:

getRowCount in class WAbstractItemModel

See Also:

• WAbstractItemModel.getColumnCount(WModelIndex parent)

getHeaderFlags

public EnumSet<HeaderFlag> getHeaderFlags(int section,
 Orientation orientation)

Description copied from class: WAbstractProxyModel

Returns the flags for a header.

The default proxy implementation constructs a dummy WModelIndex with the row set to 0 and column set to section if the orientation is Orientation.Horizontal, or with the row set to section and the column set to 0 if the orientation is Orientation.Vertical.

The resulting section that is forwarded to getSourceModel().getHeaderFlags() depends on how the WModelIndex is transformed with mapToSource().

Overrides:

getHeaderFlags in class WAbstractProxyModel

See Also:

• HeaderFlag

setHeaderData

public boolean setHeaderData(int section,
 Orientation orientation,
 Object value,
 ItemDataRole role)

Description copied from class: WAbstractItemModel

Sets header data for a column or row.

Returns true if the operation was successful.

Overrides:

setHeaderData in class WAbstractItemModel

See Also:

• WAbstractItemModel.getHeaderData(int section, Orientation orientation, ItemDataRole role)

getHeaderData

public Object getHeaderData(int section,
 Orientation orientation,
 ItemDataRole role)

Description copied from class: WAbstractProxyModel

Returns the row or column header data.

The default proxy implementation constructs a dummy WModelIndex with the row set to 0 and column set to section if the orientation is Orientation.Horizontal, or with the row set to section and the column set to 0 if the orientation is Orientation.Vertical.

The resulting section that is forwarded to getSourceModel().getHeaderData() depends on how the WModelIndex is transformed with mapToSource().

Overrides:

getHeaderData in class WAbstractProxyModel

See Also:

• WAbstractItemModel.getData(WModelIndex index, ItemDataRole role)
• WAbstractItemModel.setHeaderData(int section, Orientation orientation, Object value, ItemDataRole role)

getParent

public WModelIndex getParent(WModelIndex index)

Description copied from class: WAbstractItemModel

Returns the parent for a model index.

An implementation should use createIndex() to create a model index that corresponds to the parent of a given index.

Note that the index itself may be stale (referencing a row/column within the parent that is outside the model geometry), but its parent (identified by the WModelIndex.getInternalPointer()) is referencing an existing parent. A stale index can only be used while the model geometry is being updated, i.e. during the emission of the corresponding [rows/columns](Being)[Removed/Inserted]() signals.

Specified by:

getParent in class WAbstractItemModel

See Also:

• WAbstractItemModel.getIndex(int row, int column, WModelIndex parent)

getIndex

public WModelIndex getIndex(int row,
 int column,
 WModelIndex parent)

Description copied from class: WAbstractItemModel

Returns the child index for the given row and column.

When implementing this method, you can use createIndex() to create an index that corresponds to the item at row and column within parent.

If the location is invalid (out of bounds at the parent), then an invalid index must be returned.

Specified by:

getIndex in class WAbstractItemModel

See Also:

• WAbstractItemModel.getParent(WModelIndex index)

sort

public void sort(int column,
 SortOrder order)

Description copied from class: WAbstractItemModel

Sorts the model according to a particular column.

If the model supports sorting, then it should emit the layoutAboutToBeChanged() signal, rearrange its items, and afterwards emit the layoutChanged() signal.

Overrides:

sort in class WAbstractItemModel

See Also:

• WAbstractItemModel.layoutAboutToBeChanged()
• WAbstractItemModel.layoutChanged()
