Wt::Chart::WAxisSliderWidget Class Reference

A widget for selecting an X axis range to display on an associated WCartesianChart. More...

#include <Wt/Chart/WAxisSliderWidget>

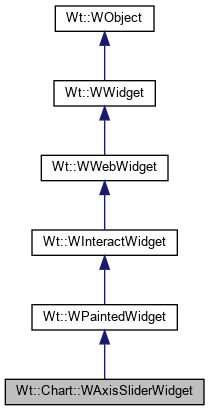

Inheritance diagram for Wt::Chart::WAxisSliderWidget:
Inheritance graph
[legend]

Public Member Functions

 WAxisSliderWidget (WContainerWidget *parent=0)
 Creates an axis slider widget. More...

 WAxisSliderWidget (WDataSeries *series, WContainerWidget *parent=0)
 Creates an axis slider widget. More...

virtual ~WAxisSliderWidget ()
 Destructor.

void setSeriesPen (const WPen &pen)
 Set the pen to draw the data series with.

const WPenseriesPen () const
 Returns the pen to draw the data series with.

void setSelectedSeriesPen (const WPen &pen)
 Set the pen to draw the selected part of the data series with. More...

WPen selectedSeriesPen () const
 Returns the pen to draw the selected part of the data series with.

void setHandleBrush (const WBrush &brush)
 Set the brush to draw the handles left and right of the selected area with.

const WBrushhandleBrush () const
 Returns the brush to draw the handles left and right of the selected area with.

void setBackground (const WBrush &background)
 Set the background brush.

const WBrushbackground () const
 Returns the background brush.

void setSelectedAreaBrush (const WBrush &brush)
 Set the brush for the selected area.

const WBrushselectedAreaBrush () const
 Returns the brush for the selected area.

void setSelectionAreaPadding (int padding, WFlags< Side > sides=All)
 Sets an internal margin for the selection area. More...

int selectionAreaPadding (Side side) const
 Returns the internal margin for the selection area. More...

void setAutoLayoutEnabled (bool enabled=true)
 Configures the axis slider layout to be automatic. More...

bool isAutoLayoutEnabled () const
 Returns whether chart layout is computed automatically. More...

void setLabelsEnabled (bool enabled=true)
 Set whether to draw the X axis tick labels on the slider widget. More...

bool isLabelsEnabled () const
 Returns whether the X axis tick labels are drawn. More...

void setYAxisZoomEnabled (bool enabled=true)
 Set whether the Y axis of the associated chart should be updated to fit the series. More...

bool isYAxisZoomEnabled () const
 Returns whether the Y axis of the associated chart should be updated to fit the series. More...

- Public Member Functions inherited from Wt::WPaintedWidget
 WPaintedWidget (WContainerWidget *parent=0)
 Create a new painted widget.

 ~WPaintedWidget ()
 Destructor.

void setPreferredMethod (Method method)
 Sets the preferred rendering method. More...

Method preferredMethod () const
 Returns the preferred rendering method. More...

void update (WFlags< PaintFlag > flags=0)
 Lets the widget repaint itself. More...

virtual void resize (const WLength &width, const WLength &height)
 Resizes the widget. More...

void addArea (WAbstractArea *area)
 Adds an interactive area. More...

void insertArea (int index, WAbstractArea *area)
 Inserts an interactive area. More...

void removeArea (WAbstractArea *area)
 Removes an interactive area. More...

WAbstractAreaarea (int index) const
 Returns the interactive area at the given index. More...

const std::vector< WAbstractArea * > areas () const
 Returns the interactive areas set for this widget. More...

JSlotrepaintSlot ()
 A JavaScript slot that repaints the widget when triggered. More...

- Public Member Functions inherited from Wt::WInteractWidget
 WInteractWidget (WContainerWidget *parent=0)
 Create an InteractWidget with optional parent.

EventSignal< WKeyEvent > & keyWentDown ()
 Event signal emitted when a keyboard key is pushed down. More...

EventSignal< WKeyEvent > & keyPressed ()
 Event signal emitted when a "character" was entered. More...

EventSignal< WKeyEvent > & keyWentUp ()
 Event signal emitted when a keyboard key is released. More...

EventSignalenterPressed ()
 Event signal emitted when enter was pressed. More...

EventSignalescapePressed ()
 Event signal emitted when escape was pressed. More...

EventSignal< WMouseEvent > & clicked ()
 Event signal emitted when a mouse key was clicked on this widget. More...

EventSignal< WMouseEvent > & doubleClicked ()
 Event signal emitted when a mouse key was double clicked on this widget. More...

EventSignal< WMouseEvent > & mouseWentDown ()
 Event signal emitted when a mouse key was pushed down on this widget. More...

EventSignal< WMouseEvent > & mouseWentUp ()
 Event signal emitted when a mouse key was released on this widget. More...

EventSignal< WMouseEvent > & mouseWentOut ()
 Event signal emitted when the mouse went out of this widget. More...

EventSignal< WMouseEvent > & mouseWentOver ()
 Event signal emitted when the mouse entered this widget. More...

EventSignal< WMouseEvent > & mouseMoved ()
 Event signal emitted when the mouse moved over this widget. More...

EventSignal< WMouseEvent > & mouseDragged ()
 Event signal emitted when the mouse is dragged over this widget. More...

EventSignal< WMouseEvent > & mouseWheel ()
 Event signal emitted when the mouse scroll wheel was used. More...

EventSignal< WTouchEvent > & touchStarted ()
 Event signal emitted when a finger is placed on the screen. More...

EventSignal< WTouchEvent > & touchEnded ()
 Event signal emitted when a finger is removed from the screen. More...

EventSignal< WTouchEvent > & touchMoved ()
 Event signal emitted when a finger, which is already placed on the screen, is moved across the screen. More...

EventSignal< WGestureEvent > & gestureStarted ()
 Event signal emitted when a gesture is started. More...

EventSignal< WGestureEvent > & gestureChanged ()
 Event signal emitted when a gesture is changed. More...

EventSignal< WGestureEvent > & gestureEnded ()
 Event signal emitted when a gesture is ended. More...

void setDraggable (const std::string &mimeType, WWidget *dragWidget=0, bool isDragWidgetOnly=false, WObject *sourceWidget=0)
 Configure dragging for drag and drop. More...

void unsetDraggable ()
 Disable drag & drop for this widget. More...

void setMouseOverDelay (int delay)
 Sets a delay for the mouse over event. More...

int mouseOverDelay () const
 Returns the mouse over signal delay. More...

virtual void setPopup (bool popup)
 Lets the widget overlay over other sibling widgets. More...

virtual void load ()
 Loads content just before the widget is used. More...

virtual bool isEnabled () const
 Returns whether the widget is enabled. More...

- Public Member Functions inherited from Wt::WWebWidget
 WWebWidget (WContainerWidget *parent=0)
 Construct a WebWidget with a given parent. More...

virtual void setPositionScheme (PositionScheme scheme)
 Sets the CSS position scheme. More...

virtual PositionScheme positionScheme () const
 Returns the CSS position scheme. More...

virtual void setOffsets (const WLength &offset, WFlags< Side > sides=All)
 Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength offset (Side s) const
 Returns a CSS offset. More...

virtual WLength width () const
 Returns the width. More...

virtual WLength height () const
 Returns the height. More...

virtual void setMinimumSize (const WLength &width, const WLength &height)
 Sets a minimum size. More...

virtual WLength minimumWidth () const
 Returns the minimum width. More...

virtual WLength minimumHeight () const
 Returns the minimum height. More...

virtual void setMaximumSize (const WLength &width, const WLength &height)
 Sets a maximum size. More...

virtual WLength maximumWidth () const
 Returns the maximum width. More...

virtual WLength maximumHeight () const
 Returns the maximum height. More...

virtual void setLineHeight (const WLength &height)
 Sets the CSS line height for contained text.

virtual WLength lineHeight () const
 Returns the CSS line height for contained text. More...

virtual void setFloatSide (Side s)
 Specifies a CSS float side. More...

virtual Side floatSide () const
 Returns the CSS float side. More...

virtual void setClearSides (WFlags< Side > sides)
 Sets the sides that should be cleared of floats. More...

virtual WFlags< SideclearSides () const
 Returns the sides that should remain empty. More...

virtual void setMargin (const WLength &margin, WFlags< Side > sides=All)
 Sets CSS margins around the widget. More...

virtual WLength margin (Side side) const
 Returns a CSS margin set. More...

virtual void setHiddenKeepsGeometry (bool enabled)
 Sets whether the widget keeps its geometry when hidden. More...

virtual bool hiddenKeepsGeometry () const
 Returns whether the widget keeps its geometry when hidden. More...

virtual void setHidden (bool hidden, const WAnimation &animation=WAnimation())
 Hides or shows the widget. More...

virtual bool isHidden () const
 Returns whether the widget is set hidden. More...

virtual bool isVisible () const
 Returns whether the widget is visible. More...

virtual void setDisabled (bool disabled)
 Sets whether the widget is disabled. More...

virtual bool isDisabled () const
 Returns whether the widget is set disabled. More...

virtual bool isPopup () const
 Returns whether the widget is overlayed. More...

virtual void setInline (bool isInline)
 Sets whether the widget is displayed inline or as a block. More...

virtual bool isInline () const
 Returns whether the widget is displayed inline or as block. More...

virtual void setDecorationStyle (const WCssDecorationStyle &style)
 Sets a CSS decoration style. More...

virtual WCssDecorationStyledecorationStyle ()
 Returns the decoration style of this widget. More...

virtual void setStyleClass (const WString &styleClass)
 Sets (one or more) CSS style classes. More...

virtual WString styleClass () const
 Returns the CSS style class. More...

virtual void addStyleClass (const WString &styleClass, bool force=false)
 Adds a CSS style class. More...

virtual void removeStyleClass (const WString &styleClass, bool force=false)
 Removes a CSS style class. More...

virtual bool hasStyleClass (const WString &styleClass) const
 Returns whether the widget has a style class.

virtual void setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())
 Sets the vertical alignment. More...

virtual AlignmentFlag verticalAlignment () const
 Returns the vertical alignment. More...

virtual WLength verticalAlignmentLength () const
 Returns the fixed vertical alignment that was set. More...

virtual void setToolTip (const WString &text, TextFormat textFormat=PlainText)
 Sets a tooltip. More...

virtual void setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
 Enable deferred tooltip. More...

virtual WString toolTip () const
 Returns the tooltip.

virtual void refresh ()
 Refresh the widget. More...

virtual void setAttributeValue (const std::string &name, const WString &value)
 Sets an attribute value. More...

virtual WString attributeValue (const std::string &name) const
 Returns an attribute value. More...

virtual void setJavaScriptMember (const std::string &name, const std::string &value)
 Sets a JavaScript member. More...

virtual std::string javaScriptMember (const std::string &name) const
 Returns the value of a JavaScript member. More...

virtual void callJavaScriptMember (const std::string &name, const std::string &args)
 Calls a JavaScript member. More...

virtual bool loaded () const
 Returns whether this widget has been loaded. More...

virtual void setId (const std::string &id)
 Sets the CSS Id. More...

virtual WWidgetfind (const std::string &name)
 Finds a descendent widget by name. More...

virtual WWidgetfindById (const std::string &id)
 Finds a descendent widget by id.

virtual void setSelectable (bool selectable)
 Sets as selectable. More...

virtual void doJavaScript (const std::string &javascript)
 Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual const std::string id () const
 Returns the (unique) identifier for this object. More...

void setLoadLaterWhenInvisible (bool)
 Change the way the widget is loaded when invisible. More...

std::string htmlTagName () const
 returns the current html tag name More...

void setHtmlTagName (const std::string &tag)
 set the custom HTML tag name More...

const std::vector< WWidget * > & children () const
 Returns contained widgets. More...

SignalchildrenChanged ()
 Signal emitted when children have been added or removed. More...

virtual void setCanReceiveFocus (bool enabled)
 Sets whether the widget can receive focus. More...

virtual bool canReceiveFocus () const
 Returns whether the widget can receive focus. More...

virtual bool setFirstFocus ()
 Set focus on the widget's first descendant. More...

virtual void setFocus (bool focus)
 Sets focus. More...

virtual bool hasFocus () const
 Returns whether the widget currently has the focus.

virtual void setTabIndex (int index)
 Sets the tab index. More...

virtual int tabIndex () const
 Returns the tab index. More...

EventSignalblurred ()
 Signal emitted when the widget lost focus. More...

EventSignalfocussed ()
 Signal emitted when the widget recieved focus. More...

virtual bool scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)
 Returns whether scroll visibility detection is enabled for this widget. More...

virtual void setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)
 Sets whether scroll visibility detection is enabled for this widget. More...

virtual int scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)
 Returns the margin around the viewport within which the widget is considered visible. More...

virtual void setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)
 Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > & scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)
 Signal triggered when the scroll visibility of this widget changes. More...

virtual bool isScrollVisible () const WT_CXX11ONLY(finaloverride)
 Returns whether this widget is currently considered scroll visible. More...

virtual void setThemeStyleEnabled (bool enabled)
 Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool isThemeStyleEnabled () const
 Returns whether this widget is currently styled by the chosen theme. More...

- Public Member Functions inherited from Wt::WWidget
virtual ~WWidget ()
 Destructor. More...

WWidgetparent () const
 Returns the parent widget. More...

virtual void removeChild (WObject *child)
 Removes a child object. More...

void setWidth (const WLength &width)
 Sets the width. More...

void setHeight (const WLength &height)
 Sets the height. More...

virtual void positionAt (const WWidget *widget, Orientation orientation=Vertical)
 Positions a widget next to another widget. More...

virtual void toggleStyleClass (const WString &styleClass, bool add, bool force=false)
 Toggles a CSS style class.

std::string jsRef () const
 Returns a JavaScript expression to the corresponding DOM node. More...

void setFocus ()
 Sets focus. More...

virtual void acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
 Sets a mime type to be accepted for dropping. More...

virtual void stopAcceptDrops (const std::string &mimeType)
 Indicates that a mime type is no longer accepted for dropping. More...

virtual void setObjectName (const std::string &name)
 Sets an object name. More...

virtual void htmlText (std::ostream &out)
 Streams the (X)HTML representation. More...

bool isRendered () const
 Returns whether the widget is rendered. More...

void hide ()
 Hides the widget. More...

void animateHide (const WAnimation &animation)
 Hides the widget using an animation. More...

void show ()
 Shows the widget. More...

void animateShow (const WAnimation &animation)
 Shows the widget using an animation. More...

void enable ()
 Enables the widget. More...

void disable ()
 Disable thes widget. More...

bool layoutSizeAware () const
 Returns whether the widget is layout size aware. More...

- Public Member Functions inherited from Wt::WObject
 WObject (WObject *parent=0)
 Create a WObject with a given parent object. More...

virtual ~WObject ()
 Destructor. More...

virtual std::string objectName () const
 Returns the object name. More...

void resetLearnedSlots ()
 Resets learned stateless slot implementations. More...

template<class T >
void resetLearnedSlot (void(T::*method)())
 Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)())
 Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())
 Declares a slot to be stateless and learn client-side behaviour in advance. More...

void isNotStateless ()
 Marks the current function as not stateless. More...

template<class T >
WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)
 Provides a JavaScript implementation for a method. More...

void addChild (WObject *child)
 Adds a child object. More...

const std::vector< WObject * > & children () const
 Returns the children.

WObjectparent () const
 Returns the parent object.


Protected Member Functions

virtual void render (WFlags< RenderFlag > flags) WT_CXX11ONLY(override)
 Renders the widget. More...

virtual void paintEvent (WPaintDevice *paintDevice) WT_CXX11ONLY(override)
 Paints the widget. More...

- Protected Member Functions inherited from Wt::WPaintedWidget
WJavaScriptHandle< WTransformcreateJSTransform ()
 Create a WTransform that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WBrushcreateJSBrush ()
 Create a WBrush that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WPencreateJSPen ()
 Create a WPen that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WPainterPathcreateJSPainterPath ()
 Create a WPainterPath that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WRectFcreateJSRect ()
 Create a WRectF that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WPointFcreateJSPoint ()
 Create a WPointF that is accessible from JavaScript, associated with this WPaintedWidget.

virtual void layoutSizeChanged (int width, int height)
 Virtual method that indicates a size change. More...

virtual Method getMethod () const
 Returns the actual method used for rendering. More...

virtual WPaintDevicecreatePaintDevice () const
 Creates a paint device. More...

virtual void enableAjax ()
 Progresses to an Ajax-enabled widget. More...

std::string objJsRef () const
 Returns a JavaScript reference to the client side representation of the WPaintedWidget. More...

- Protected Member Functions inherited from Wt::WInteractWidget
virtual void propagateSetEnabled (bool enabled)
 Propagates that a widget was enabled or disabled through children. More...

- Protected Member Functions inherited from Wt::WWebWidget
virtual WStatelessSlot * getStateless (Method method)
 On-demand stateless slot implementation. More...

- Protected Member Functions inherited from Wt::WWidget
void setLayoutSizeAware (bool sizeAware)
 Sets the widget to be aware of its size set by a layout manager. More...

 WWidget (WContainerWidget *parent=0)
 Creates a widget. More...

virtual void dropEvent (WDropEvent dropEvent)
 Handles a drop event. More...

virtual int boxPadding (Orientation orientation) const
 Returns the widget's built-in padding. More...

virtual int boxBorder (Orientation orientation) const
 Returns the widget's built-in border width. More...

void scheduleRender (WFlags< RepaintFlag > flags=0)
 Schedules rerendering of the widget. More...


Additional Inherited Members

- Public Types inherited from Wt::WPaintedWidget
- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()
 Typedef for a WObject method without arguments.

- Static Public Member Functions inherited from Wt::WWebWidget
static WString escapeText (const WString &text, bool newlinesToo=false)
 Escape HTML control characters in the text, to display literally (deprecated). More...

static std::string & escapeText (std::string &text, bool newlinestoo=false)
 Escape HTML control characters in the text, to display literally (deprecated). More...

static bool removeScript (WString &text)
 Remove tags/attributes from text that are not passive (deprecated). More...

static std::string jsStringLiteral (const std::string &v, char delimiter= '\'')
 Turn a UTF8 encoded string into a JavaScript string literal. More...

- Static Public Member Functions inherited from Wt::WWidget
static WString tr (const char *key)
 Short hand for WString::tr() More...

- Static Protected Member Functions inherited from Wt::WObject
static WObjectsender ()
 Returns the sender of the current slot call. More...


Detailed Description

A widget for selecting an X axis range to display on an associated WCartesianChart.

Note
This widget currently only works with the HtmlCanvas rendering method.

Constructor & Destructor Documentation

Wt::Chart::WAxisSliderWidget::WAxisSliderWidget ( WContainerWidget parent = 0)

Creates an axis slider widget.

Creates an axis slider widget that is not associated with a chart. Before it is used, a chart should be assigned with setChart(), and a series column chosen with setSeriesColumn().

Wt::Chart::WAxisSliderWidget::WAxisSliderWidget ( WDataSeries series,
WContainerWidget parent = 0
)

Creates an axis slider widget.

Creates an axis slider widget associated with the given data series of the given chart.

Member Function Documentation

bool Wt::Chart::WAxisSliderWidget::isAutoLayoutEnabled ( ) const

Returns whether chart layout is computed automatically.

See also
setAutoLayoutEnabled()
bool Wt::Chart::WAxisSliderWidget::isLabelsEnabled ( ) const

Returns whether the X axis tick labels are drawn.

See also
setLabelsEnabled()
bool Wt::Chart::WAxisSliderWidget::isYAxisZoomEnabled ( ) const

Returns whether the Y axis of the associated chart should be updated to fit the series.

See also
setYAxisZoomEnabled()
void Wt::Chart::WAxisSliderWidget::paintEvent ( WPaintDevice paintDevice)
overrideprotectedvirtual

Paints the widget.

You should reimplement this method to paint the contents of the widget, using the given paintDevice.

Implements Wt::WPaintedWidget.

void Wt::Chart::WAxisSliderWidget::render ( WFlags< RenderFlag flags)
overrideprotectedvirtual

Renders the widget.

This function renders the widget (or an update for the widget), after this has been scheduled using scheduleRender().

The default implementation will render the widget by serializing changes to JavaScript and HTML. You may want to reimplement this widget if you have been postponing some of the layout / rendering implementation until the latest moment possible. In that case you should make sure you call the base implementation however.

Reimplemented from Wt::WPaintedWidget.

int Wt::Chart::WAxisSliderWidget::selectionAreaPadding ( Side  side) const

Returns the internal margin for the selection area.

This is either the padding set through setSelectionAreaPadding() or computed using setAutoLayoutEnabled().

See also
setPlotAreaPadding()
void Wt::Chart::WAxisSliderWidget::setAutoLayoutEnabled ( bool  enabled = true)

Configures the axis slider layout to be automatic.

This configures the selection area so that the space around it is suited for the text that is rendered.

void Wt::Chart::WAxisSliderWidget::setLabelsEnabled ( bool  enabled = true)

Set whether to draw the X axis tick labels on the slider widget.

Labels are enabled by default.

void Wt::Chart::WAxisSliderWidget::setSelectedSeriesPen ( const WPen pen)

Set the pen to draw the selected part of the data series with.

If not set, this defaults to seriesPen().

void Wt::Chart::WAxisSliderWidget::setSelectionAreaPadding ( int  padding,
WFlags< Side sides = All
)

Sets an internal margin for the selection area.

This configures the area (in pixels) around the selection area that is available for the axes and labels, and the handles.

Alternatively, you can configure the chart layout to be computed automatically using setAutoLayoutEnabled().

See also
setAutoLayoutEnabled()
void Wt::Chart::WAxisSliderWidget::setYAxisZoomEnabled ( bool  enabled = true)

Set whether the Y axis of the associated chart should be updated to fit the series.

Y axis zoom is enabled by default.


Generated on Tue Nov 21 2017 for the C++ Web Toolkit (Wt) by doxygen 1.8.11
