CategoryExample Class Reference
Charts example

A Widget that demonstrates a category chart. More...

#include <ChartsExample.h>

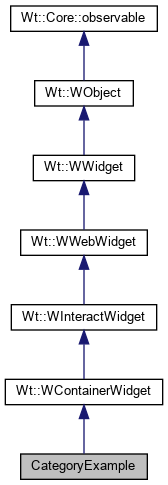

Inheritance diagram for CategoryExample:
Inheritance graph
[legend]

Public Member Functions

 CategoryExample (Wt::WContainerWidget *parent)
 Creates the category chart example. More...

- Public Member Functions inherited from Wt::WContainerWidget
 WContainerWidget ()

 ~WContainerWidget ()

void setLayout (std::unique_ptr< WLayout > layout)

Layout * setLayout (std::unique_ptr< Layout > layout)

WLayout * layout () const

virtual void addWidget (std::unique_ptr< WWidget > widget)

Widget * addWidget (std::unique_ptr< Widget > widget)

Widget * addNew (Args &&...args)

virtual void insertBefore (std::unique_ptr< WWidget > widget, WWidget *before)

Widget * insertBefore (std::unique_ptr< Widget > widget, WWidget *before)

virtual void insertWidget (int index, std::unique_ptr< WWidget > widget)

Widget * insertWidget (int index, std::unique_ptr< Widget > widget)

Widget * insertNew (int index, Args &&...args)

virtual std::unique_ptr< WWidget > removeWidget (WWidget *widget) override

virtual void clear ()

virtual int indexOf (WWidget *widget) const

virtual WWidget * widget (int index) const

virtual int count () const

void setContentAlignment (WFlags< AlignmentFlag > contentAlignment)

void setPadding (const WLength &padding, WFlags< Side > sides=AllSides)

WLength padding (Side side) const

WFlags< AlignmentFlag > contentAlignment () const

void setOverflow (Overflow overflow, WFlags< Orientation > orientation=(Orientation::Horizontal|Orientation::Vertical))

void setList (bool list, bool ordered=false)

bool isList () const

bool isUnorderedList () const

bool isOrderedList () const

EventSignal< WScrollEvent > & scrolled ()

int scrollTop () const

int scrollLeft () const

- Public Member Functions inherited from Wt::WInteractWidget
 WInteractWidget ()

EventSignal< WKeyEvent > & keyWentDown ()

EventSignal< WKeyEvent > & keyPressed ()

EventSignal< WKeyEvent > & keyWentUp ()

EventSignal & enterPressed ()

EventSignal & escapePressed ()

EventSignal< WMouseEvent > & clicked ()

EventSignal< WMouseEvent > & doubleClicked ()

EventSignal< WMouseEvent > & mouseWentDown ()

EventSignal< WMouseEvent > & mouseWentUp ()

EventSignal< WMouseEvent > & mouseWentOut ()

EventSignal< WMouseEvent > & mouseWentOver ()

EventSignal< WMouseEvent > & mouseMoved ()

EventSignal< WMouseEvent > & mouseDragged ()

EventSignal< WMouseEvent > & mouseWheel ()

EventSignal< WTouchEvent > & touchStarted ()

EventSignal< WTouchEvent > & touchEnded ()

EventSignal< WTouchEvent > & touchMoved ()

EventSignal< WGestureEvent > & gestureStarted ()

EventSignal< WGestureEvent > & gestureChanged ()

EventSignal< WGestureEvent > & gestureEnded ()

void setDraggable (const std::string &mimeType, WWidget *dragWidget=nullptr, bool isDragWidgetOnly=false, WObject *sourceWidget=nullptr)

void unsetDraggable ()

void setMouseOverDelay (int delay)

int mouseOverDelay () const

virtual void setPopup (bool popup) override

virtual void load () override

virtual bool isEnabled () const override

- Public Member Functions inherited from Wt::WWebWidget
 WWebWidget ()

virtual std::vector< WWidget *> children () const override

Signal & childrenChanged ()

virtual void setPositionScheme (PositionScheme scheme) override

virtual PositionScheme positionScheme () const override

virtual void setOffsets (const WLength &offset, WFlags< Side > sides=AllSides) override

virtual WLength offset (Side s) const override

virtual void resize (const WLength &width, const WLength &height) override

virtual WLength width () const override

virtual WLength height () const override

virtual void setMinimumSize (const WLength &width, const WLength &height) override

virtual WLength minimumWidth () const override

virtual WLength minimumHeight () const override

virtual void setMaximumSize (const WLength &width, const WLength &height) override

virtual WLength maximumWidth () const override

virtual WLength maximumHeight () const override

virtual void setLineHeight (const WLength &height) override

virtual WLength lineHeight () const override

virtual void setFloatSide (Side s) override

virtual Side floatSide () const override

virtual void setClearSides (WFlags< Side > sides) override

virtual WFlags< Side > clearSides () const override

virtual void setMargin (const WLength &margin, WFlags< Side > sides=AllSides) override

virtual WLength margin (Side side) const override

virtual void setHiddenKeepsGeometry (bool enabled) override

virtual bool hiddenKeepsGeometry () const override

virtual void setHidden (bool hidden, const WAnimation &animation=WAnimation()) override

virtual bool isHidden () const override

virtual bool isVisible () const override

virtual void setDisabled (bool disabled) override

virtual bool isDisabled () const override

virtual bool isPopup () const override

virtual void setInline (bool isInline) override

virtual bool isInline () const override

virtual void setDecorationStyle (const WCssDecorationStyle &style) override

virtual WCssDecorationStyle & decorationStyle () override

virtual void setStyleClass (const WString &styleClass) override

virtual WString styleClass () const override

virtual void addStyleClass (const WString &styleClass, bool force=false) override

virtual void removeStyleClass (const WString &styleClass, bool force=false) override

virtual bool hasStyleClass (const WString &styleClass) const override

virtual void setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength()) override

virtual AlignmentFlag verticalAlignment () const override

virtual WLength verticalAlignmentLength () const override

virtual void setToolTip (const WString &text, TextFormat textFormat=TextFormat::Plain) override

virtual void setDeferredToolTip (bool enable, TextFormat textFormat=TextFormat::Plain) override

virtual WString toolTip () const override

virtual void refresh () override

virtual void setAttributeValue (const std::string &name, const WString &value) override

virtual WString attributeValue (const std::string &name) const override

virtual void setJavaScriptMember (const std::string &name, const std::string &value) override

virtual std::string javaScriptMember (const std::string &name) const override

virtual void callJavaScriptMember (const std::string &name, const std::string &args) override

virtual bool loaded () const override

virtual void setId (const std::string &id) override

virtual WWidget * find (const std::string &name) override

virtual WWidget * findById (const std::string &id) override

virtual void setSelectable (bool selectable) override

virtual void doJavaScript (const std::string &javascript) override

virtual const std::string id () const override

void setLoadLaterWhenInvisible (bool)

std::string htmlTagName () const

void setHtmlTagName (const std::string &tag)

virtual void setCanReceiveFocus (bool enabled) override

virtual bool canReceiveFocus () const override

virtual bool setFirstFocus () override

virtual void setFocus (bool focus) override

virtual bool hasFocus () const override

virtual void setTabIndex (int index) override

virtual int tabIndex () const override

EventSignal & blurred ()

EventSignal & focussed ()

virtual bool scrollVisibilityEnabled () const final override

virtual void setScrollVisibilityEnabled (bool enabled) final override

virtual int scrollVisibilityMargin () const final override

virtual void setScrollVisibilityMargin (int margin) final override

virtual Signal< bool > & scrollVisibilityChanged () final override

virtual bool isScrollVisible () const final override

virtual void setThemeStyleEnabled (bool enabled) final override

virtual bool isThemeStyleEnabled () const final override

virtual void setObjectName (const std::string &name) override

- Public Member Functions inherited from Wt::WWidget
virtual ~WWidget ()

WWidget * parent () const

std::unique_ptr< Widget > removeWidget (Widget *widget)

std::unique_ptr< WWidget > removeFromParent ()

void setWidth (const WLength &width)

void setHeight (const WLength &height)

virtual void positionAt (const WWidget *widget, Orientation orientation=Orientation::Vertical)

virtual void toggleStyleClass (const WString &styleClass, bool add, bool force=false)

std::string jsRef () const

void setFocus ()

virtual void acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())

virtual void stopAcceptDrops (const std::string &mimeType)

virtual void htmlText (std::ostream &out)

bool isRendered () const

void hide ()

void animateHide (const WAnimation &animation)

void show ()

void animateShow (const WAnimation &animation)

void enable ()

void disable ()

bool layoutSizeAware () const

- Public Member Functions inherited from Wt::WObject
void addChild (std::unique_ptr< WObject > child)

Child * addChild (std::unique_ptr< Child > child)

std::unique_ptr< WObject > removeChild (WObject *child)

std::unique_ptr< Child > removeChild (Child *child)

virtual std::string objectName () const

void resetLearnedSlots ()

void resetLearnedSlot (void(T::*method)())

WStatelessSlot * implementStateless (void(T::*method)())

WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())

void isNotStateless ()

WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)

- Public Member Functions inherited from Wt::Core::observable
 observable () noexcept

virtual ~observable ()

auto bindSafe (void(C::*method)(Args...)) noexcept

auto bindSafe (void(C::*method)(Args...) const) const noexcept

auto bindSafe (const Function &function) noexcept


Additional Inherited Members

- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()

- Static Public Member Functions inherited from Wt::WWebWidget
static std::string jsStringLiteral (const std::string &v, char delimiter='\'')

- Static Public Member Functions inherited from Wt::WWidget
static WString tr (const char *key)

- Protected Member Functions inherited from Wt::WInteractWidget
virtual void propagateSetEnabled (bool enabled) override

- Protected Member Functions inherited from Wt::WWebWidget
virtual void enableAjax () override

virtual WStatelessSlot * getStateless (Method method) override

virtual void render (WFlags< RenderFlag > flags) override

- Protected Member Functions inherited from Wt::WWidget
void setLayoutSizeAware (bool sizeAware)

virtual void layoutSizeChanged (int width, int height)

 WWidget ()

virtual void dropEvent (WDropEvent dropEvent)

virtual int boxPadding (Orientation orientation) const

virtual int boxBorder (Orientation orientation) const

void scheduleRender (WFlags< RepaintFlag > flags=None)


Detailed Description

A Widget that demonstrates a category chart.

Definition at line 39 of file ChartsExample.h.

Constructor & Destructor Documentation

◆ CategoryExample()

CategoryExample::CategoryExample ( Wt::WContainerWidget *  parent)

Creates the category chart example.

Definition at line 111 of file ChartsExample.C.

111  :
112  WContainerWidget(parent)
113 {
114  new WText(WString::tr("category chart"), this);
115
116  WAbstractItemModel *model
117  = readCsvFile(WApplication::appRoot() + "category.csv", this);
118
119  if (!model)
120  return;
121
122  // Show a view that allows editing of the model.
123  WContainerWidget *w = new WContainerWidget(this);
124  WTableView *table = new WTableView(w);
125
126  table->setMargin(10, Top | Bottom);
127  table->setMargin(WLength::Auto, Left | Right);
128
129  table->setModel(model);
130  table->setSortingEnabled(true);
131  table->setColumnResizeEnabled(true);
132  // table->setSelectionMode(ExtendedSelection);
133  table->setAlternatingRowColors(true);
134  table->setColumnAlignment(0, AlignCenter);
135  table->setHeaderAlignment(0, AlignCenter);
136  table->setRowHeight(22);
137
138  // Editing does not really work without Ajax, it would require an
139  // additional button somewhere to confirm the edited value.
140  if (WApplication::instance()->environment().ajax()) {
141  table->resize(600, 20 + 5*22);
142  table->setEditTriggers(WAbstractItemView::SingleClicked);
143  } else {
144  table->resize(600, WLength::Auto);
145  table->setEditTriggers(WAbstractItemView::NoEditTrigger);
146  }
147
148  // We use a single delegate for all items which rounds values to
149  // the closest integer value.
150  WItemDelegate *delegate = new WItemDelegate(this);
151  delegate->setTextFormat("%.f");
152  table->setItemDelegate(delegate);
153
154  table->setColumnWidth(0, 80);
155  for (int i = 1; i < model->columnCount(); ++i)
156  table->setColumnWidth(i, 120);
157
158  /*
159  * Create the category chart.
160  */
161  WCartesianChart *chart = new WCartesianChart(this);
162  chart->setModel(model); // set the model
163  chart->setXSeriesColumn(0); // set the column that holds the categories
164  chart->setLegendEnabled(true); // enable the legend
165  chart->setZoomEnabled(true);
166  chart->setPanEnabled(true);
167
168  // Automatically layout chart (space for axes, legend, ...)
169  chart->setAutoLayoutEnabled(true);
170
171  chart->setBackground(WColor(200,200,200));
172
173  /*
174  * Add all (but first) column as bar series
175  */
176  for (int i = 1; i < model->columnCount(); ++i) {
177  WDataSeries *s = new WDataSeries(i, BarSeries);
178  s->setShadow(WShadow(3, 3, WColor(0, 0, 0, 127), 3));
179  chart->addSeries(s);
180  }
181
182  chart->resize(800, 400);
183
184  chart->setMargin(10, Top | Bottom);
185  chart->setMargin(WLength::Auto, Left | Right);
186
187  /*
188  * Provide a widget to manipulate chart properties
189  */
190  new ChartConfig(chart, this);
191 }
Wt::WItemDelegate::setTextFormat
void setTextFormat(const WString &format)
Wt::WTableView::resize
virtual void resize(const WLength &width, const WLength &height) override
Wt::Chart::WCartesianChart::setPanEnabled
void setPanEnabled(bool pan=true)
Key::Left
Wt::Chart::WCartesianChart::addSeries
void addSeries(std::unique_ptr< WDataSeries > series)
Key::Right
Wt::Chart::WDataSeries::setShadow
void setShadow(const WShadow &shadow)
Wt::WAbstractItemView::setItemDelegate
void setItemDelegate(const std::shared_ptr< WAbstractItemDelegate > &delegate)
Wt::WTableView::setModel
virtual void setModel(const std::shared_ptr< WAbstractItemModel > &model) override
Wt::WWebWidget::setMargin
virtual void setMargin(const WLength &margin, WFlags< Side > sides=AllSides) override
Wt::Chart::WCartesianChart::setZoomEnabled
void setZoomEnabled(bool zoom=true)
Wt::Chart::WAbstractChart::setBackground
void setBackground(const WBrush &background)
Wt::WPaintedWidget::resize
virtual void resize(const WLength &width, const WLength &height) override
Wt::Chart::WCartesianChart::setXSeriesColumn
void setXSeriesColumn(int modelColumn)
Wt::Chart::WAbstractChart::setModel
void setModel(const std::shared_ptr< WAbstractItemModel > &model)
Wt::WAbstractItemModel::columnCount
virtual int columnCount(const WModelIndex &parent=WModelIndex()) const=0
Wt::WTableView::setAlternatingRowColors
virtual void setAlternatingRowColors(bool enable) override
Wt::WAbstractItemView::setEditTriggers
void setEditTriggers(WFlags< EditTrigger > editTriggers)
Wt::WAbstractItemView::setColumnResizeEnabled
void setColumnResizeEnabled(bool enabled)
Wt::WTableView::setColumnWidth
virtual void setColumnWidth(int column, const WLength &width) override
Wt::Chart::WAbstractChart::setAutoLayoutEnabled
void setAutoLayoutEnabled(bool enabled=true)
Wt::WAbstractItemView::setHeaderAlignment
virtual void setHeaderAlignment(int column, WFlags< AlignmentFlag > alignment)
Wt::Chart::WCartesianChart::setLegendEnabled
void setLegendEnabled(bool enabled)
Wt::WAbstractItemView::setSortingEnabled
void setSortingEnabled(bool enabled)
Wt::WCompositeWidget::setMargin
virtual void setMargin(const WLength &margin, WFlags< Side > sides=AllSides) override
ChartConfig
A class that allows configuration of a cartesian chart.
Definition: ChartConfig.h:40
Wt::WTableView::setRowHeight
virtual void setRowHeight(const WLength &rowHeight) override
Wt::WAbstractItemView::setColumnAlignment
virtual void setColumnAlignment(int column, AlignmentFlag alignment)
The documentation for this class was generated from the following files:
Generated on Tue Dec 15 2020 for the C++ Web Toolkit (Wt) by doxygen 1.8.13
