Wt::Ext::TableView Class Reference

A widget that displays data in a table. More...

#include <Wt/Ext/TableView>

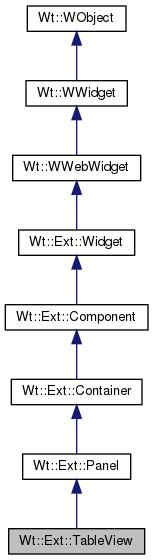

Inheritance diagram for Wt::Ext::TableView:
Inheritance graph
[legend]

Public Member Functions

 TableView (WContainerWidget *parent=0)
 Create a new table view. More...

void setModel (WAbstractItemModel *model)
 Specify the model. More...

WAbstractItemModelmodel () const
 Return the model. More...

void resizeColumnsToContents (bool onResize=false)
 Let the table view resize columns to fit their contents. More...

void setAutoExpandColumn (int column, int minWidth=50, int maxWidth=1000)
 Set the column which will auto-expand to take the remaining space. More...

int autoExpandColumn () const
 Return the column index of the column that auto-expands.

void setDataLocation (DataLocation dataLocation)
 Configure the location of the data. More...

void setColumnsMovable (bool movable)
 Allow the user to move columns using drag and drop. More...

bool columnsMovable () const
 Return if columns are movable. More...

void setAlternatingRowColors (bool enable)
 Render rows with alternating colors. More...

bool alternatingRowColors () const
 Return if rows are rendered with alternating colors. More...

void setHighlightMouseOver (bool highlight)
 Configure if the row under the mouse will be highlighted. More...

bool highlightMouseOver () const
 Return if the row under the mouse will be highlighted.

void setColumnHidden (int column, bool hide)
 Change the visibility of a column. More...

bool isColumnHidden (int column) const
 Return if a column is hidden. More...

void hideColumn (int column)
 Hide a column. More...

void showColumn (int column)
 Show a column. More...

void setColumnWidth (int column, int pixels)
 Set the column width (in pixels) for a column. More...

int columnWidth (int column) const
 Return the column width. More...

void setColumnAlignment (int column, AlignmentFlag alignment)
 Set the horizontal content alignment of a column. More...

AlignmentFlag columnAlignment (int column) const
 Return the horizontal content alignment of a column. More...

void setColumnSortable (int column, bool sortable)
 Allow a column to be sorted by the user. More...

bool isColumnSortable (int column) const
 Return if a column is sortable. More...

void enableColumnHiding (int column, bool enable)
 Allow a column to be hidden through its context menu. More...

bool isColumnHidingEnabled (int column) const
 Return if a column may be hidden through its context menu. More...

void setEditor (int column, FormField *editor)
 Configure an editor for the given column. More...

void setRenderer (int column, const std::string &rendererJS)
 Configure a custom renderer for the given column. More...

void setPageSize (int pageSize)
 Configure a page size to browse the data page by page. More...

int pageSize () const
 Return the page size. More...

ToolBarcreatePagingToolBar ()
 Create a paging tool bar. More...

virtual void refresh ()
 Refresh the widget. More...

void setCurrentCell (int row, int column)
 Give a cell focus. More...

int currentRow () const
 Return the index of the row currently selected. More...

int currentColumn () const
 Return the index of the column currently selected. More...

const std::vector< int > & selectedRows ()
 The list of rows that are currently selected. More...

void clearSelection ()
 Clear the current selection. More...

SelectionMode selectionMode () const
 Return the current selection mode. More...

void setSelectionMode (SelectionMode mode)
 Set the selection mode. More...

void setSelectionBehavior (SelectionBehavior behavior)
 Set the selection behaviour. More...

SelectionBehavior selectionBehavior () const
 Return the current selection behaviour. More...

Signal< int, int > & cellClicked ()
 Signal emitted when a cell is clicked. More...

Signal< int, int, int, int > & currentCellChanged ()
 Signal emitted when a new cell received focus. More...

SignalitemSelectionChanged ()
 Signal emitted when the selection changes. More...

- Public Member Functions inherited from Wt::Ext::Panel
 Panel (WContainerWidget *parent=0)
 Create a new panel. More...

 ~Panel ()
 Destruct a panel.

void setTopToolBar (ToolBar *toolBar)
 Set a tool bar at the top of the panel. More...

ToolBartopToolBar () const
 Return the top tool bar. More...

void setBottomToolBar (ToolBar *bottomBar)
 Set a tool bar at the bottom of the panel. More...

ToolBarbottomToolBar () const
 Return the top tool bar. More...

void addFooterButton (Button *button)
 Add a button to the footer of the panel. More...

void removeFooterButton (Button *button)
 Remove a button from the footer of the panel. More...

const std::vector< Button * > & footerButtons () const
 Retrn the list of footer buttons. More...

void setTitle (const WString &title)
 Set a title. More...

const WStringtitle () const
 Get the title. More...

void setTitleBar (bool enable)
 Show or hide a title bar for the panel. More...

bool titleBar () const
 Get the title bar. More...

void setAnimate (bool on)
 Set to use animations for the expand/collapse operation. More...

bool animate () const
 Return if using animations for expand/collapse. More...

void setAutoScrollBars (bool on)
 Option to show scroll bars when needed. More...

bool autoScrollBars () const
 Return if showing scroll bars when needed. More...

void setBorder (bool show)
 Change the border around the panel. More...

bool border () const
 Get the border setting. More...

void setCollapsed (bool on)
 Set the panel expanded or callapsed. More...

void collapse ()
 Collapse the panel. More...

void expand ()
 Expand the panel. More...

bool isCollapsed () const
 Return if the panel is collapsed. More...

void setCollapsible (bool on)
 Allow the user to collapse/expand the panel. More...

bool isCollapsible () const
 Return if the user may collapse/expand the panel. More...

void setResizable (bool on)
 Allow the user to resize the panel. More...

bool isResizable () const
 Return if the user may resize the panel. More...

JSignalcollapsed ()
 Signal emitted when the panel is collapsed. More...

JSignalexpanded ()
 Signal emitted when the panel is expanded. More...

- Public Member Functions inherited from Wt::Ext::Container
 Container (WContainerWidget *parent=0)
 Create a new container. More...

virtual ~Container ()
 Destroy the container.

void setLayout (WLayout *layout)
 Set a layout manager for the container. More...

WLayoutlayout ()
 Get the layout manager that was set for the container. More...

- Public Member Functions inherited from Wt::Ext::Component
void setEnabled (bool how)
 Enables or disables the widget. More...

void enable ()
 Enables the widget.

void disable ()
 Disables the widget.

- Public Member Functions inherited from Wt::Ext::Widget
 ~Widget ()
 Delete a widget.

virtual void setHidden (bool hidden, const WAnimation &animation=WAnimation())
 Hides or shows the widget. More...

- Public Member Functions inherited from Wt::WWebWidget
 WWebWidget (WContainerWidget *parent=0)
 Construct a WebWidget with a given parent. More...

virtual void setPositionScheme (PositionScheme scheme)
 Sets the CSS position scheme. More...

virtual PositionScheme positionScheme () const
 Returns the CSS position scheme. More...

virtual void setOffsets (const WLength &offset, WFlags< Side > sides=All)
 Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength offset (Side s) const
 Returns a CSS offset. More...

virtual void resize (const WLength &width, const WLength &height)
 Resizes the widget. More...

virtual WLength width () const
 Returns the width. More...

virtual WLength height () const
 Returns the height. More...

virtual void setMinimumSize (const WLength &width, const WLength &height)
 Sets a minimum size. More...

virtual WLength minimumWidth () const
 Returns the minimum width. More...

virtual WLength minimumHeight () const
 Returns the minimum height. More...

virtual void setMaximumSize (const WLength &width, const WLength &height)
 Sets a maximum size. More...

virtual WLength maximumWidth () const
 Returns the maximum width. More...

virtual WLength maximumHeight () const
 Returns the maximum height. More...

virtual void setLineHeight (const WLength &height)
 Sets the CSS line height for contained text.

virtual WLength lineHeight () const
 Returns the CSS line height for contained text. More...

virtual void setFloatSide (Side s)
 Specifies a CSS float side. More...

virtual Side floatSide () const
 Returns the CSS float side. More...

virtual void setClearSides (WFlags< Side > sides)
 Sets the sides that should be cleared of floats. More...

virtual WFlags< SideclearSides () const
 Returns the sides that should remain empty. More...

virtual void setMargin (const WLength &margin, WFlags< Side > sides=All)
 Sets CSS margins around the widget. More...

virtual WLength margin (Side side) const
 Returns a CSS margin set. More...

virtual void setHiddenKeepsGeometry (bool enabled)
 Sets whether the widget keeps its geometry when hidden. More...

virtual bool hiddenKeepsGeometry () const
 Returns whether the widget keeps its geometry when hidden. More...

virtual bool isHidden () const
 Returns whether the widget is set hidden. More...

virtual bool isVisible () const
 Returns whether the widget is visible. More...

virtual void setDisabled (bool disabled)
 Sets whether the widget is disabled. More...

virtual bool isDisabled () const
 Returns whether the widget is set disabled. More...

virtual bool isEnabled () const
 Returns whether the widget is enabled. More...

virtual void setPopup (bool popup)
 Lets the widget overlay over other sibling widgets. More...

virtual bool isPopup () const
 Returns whether the widget is overlayed. More...

virtual void setInline (bool isInline)
 Sets whether the widget is displayed inline or as a block. More...

virtual bool isInline () const
 Returns whether the widget is displayed inline or as block. More...

virtual void setDecorationStyle (const WCssDecorationStyle &style)
 Sets a CSS decoration style. More...

virtual WCssDecorationStyledecorationStyle ()
 Returns the decoration style of this widget. More...

virtual void setStyleClass (const WString &styleClass)
 Sets (one or more) CSS style classes. More...

virtual WString styleClass () const
 Returns the CSS style class. More...

virtual void addStyleClass (const WString &styleClass, bool force=false)
 Adds a CSS style class. More...

virtual void removeStyleClass (const WString &styleClass, bool force=false)
 Removes a CSS style class. More...

virtual bool hasStyleClass (const WString &styleClass) const
 Returns whether the widget has a style class.

virtual void setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())
 Sets the vertical alignment. More...

virtual AlignmentFlag verticalAlignment () const
 Returns the vertical alignment. More...

virtual WLength verticalAlignmentLength () const
 Returns the fixed vertical alignment that was set. More...

virtual void setToolTip (const WString &text, TextFormat textFormat=PlainText)
 Sets a tooltip. More...

virtual void setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
 Enable deferred tooltip. More...

virtual WString toolTip () const
 Returns the tooltip.

virtual void setAttributeValue (const std::string &name, const WString &value)
 Sets an attribute value. More...

virtual WString attributeValue (const std::string &name) const
 Returns an attribute value. More...

virtual void setJavaScriptMember (const std::string &name, const std::string &value)
 Sets a JavaScript member. More...

virtual std::string javaScriptMember (const std::string &name) const
 Returns the value of a JavaScript member. More...

virtual void callJavaScriptMember (const std::string &name, const std::string &args)
 Calls a JavaScript member. More...

virtual void load ()
 Loads content just before the widget is used. More...

virtual bool loaded () const
 Returns whether this widget has been loaded. More...

virtual void setId (const std::string &id)
 Sets the CSS Id. More...

virtual WWidgetfind (const std::string &name)
 Finds a descendent widget by name. More...

virtual WWidgetfindById (const std::string &id)
 Finds a descendent widget by id.

virtual void setSelectable (bool selectable)
 Sets as selectable. More...

virtual void doJavaScript (const std::string &javascript)
 Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual const std::string id () const
 Returns the (unique) identifier for this object. More...

void setLoadLaterWhenInvisible (bool)
 Change the way the widget is loaded when invisible. More...

std::string htmlTagName () const
 returns the current html tag name More...

void setHtmlTagName (const std::string &tag)
 set the custom HTML tag name More...

const std::vector< WWidget * > & children () const
 Returns contained widgets. More...

SignalchildrenChanged ()
 Signal emitted when children have been added or removed. More...

virtual void setCanReceiveFocus (bool enabled)
 Sets whether the widget can receive focus. More...

virtual bool canReceiveFocus () const
 Returns whether the widget can receive focus. More...

virtual bool setFirstFocus ()
 Set focus on the widget's first descendant. More...

virtual void setFocus (bool focus)
 Sets focus. More...

virtual bool hasFocus () const
 Returns whether the widget currently has the focus.

virtual void setTabIndex (int index)
 Sets the tab index. More...

virtual int tabIndex () const
 Returns the tab index. More...

EventSignalblurred ()
 Signal emitted when the widget lost focus. More...

EventSignalfocussed ()
 Signal emitted when the widget recieved focus. More...

virtual bool scrollVisibilityEnabled () const WT_CXX11ONLY(final override)
 Returns whether scroll visibility detection is enabled for this widget. More...

virtual void setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(final override)
 Sets whether scroll visibility detection is enabled for this widget. More...

virtual int scrollVisibilityMargin () const WT_CXX11ONLY(final override)
 Returns the margin around the viewport within which the widget is considered visible. More...

virtual void setScrollVisibilityMargin (int margin) WT_CXX11ONLY(final override)
 Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > & scrollVisibilityChanged () WT_CXX11ONLY(final override)
 Signal triggered when the scroll visibility of this widget changes. More...

virtual bool isScrollVisible () const WT_CXX11ONLY(final override)
 Returns whether this widget is currently considered scroll visible. More...

virtual void setThemeStyleEnabled (bool enabled)
 Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool isThemeStyleEnabled () const
 Returns whether this widget is currently styled by the chosen theme. More...

- Public Member Functions inherited from Wt::WWidget
virtual ~WWidget ()
 Destructor. More...

WWidgetparent () const
 Returns the parent widget. More...

virtual void removeChild (WObject *child)
 Removes a child object. More...

void setWidth (const WLength &width)
 Sets the width. More...

void setHeight (const WLength &height)
 Sets the height. More...

virtual void positionAt (const WWidget *widget, Orientation orientation=Vertical)
 Positions a widget next to another widget. More...

virtual void toggleStyleClass (const WString &styleClass, bool add, bool force=false)
 Toggles a CSS style class.

std::string jsRef () const
 Returns a JavaScript expression to the corresponding DOM node. More...

void setFocus ()
 Sets focus. More...

virtual void acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
 Sets a mime type to be accepted for dropping. More...

virtual void stopAcceptDrops (const std::string &mimeType)
 Indicates that a mime type is no longer accepted for dropping. More...

virtual void setObjectName (const std::string &name)
 Sets an object name. More...

virtual void htmlText (std::ostream &out)
 Streams the (X)HTML representation. More...

bool isRendered () const
 Returns whether the widget is rendered. More...

void hide ()
 Hides the widget. More...

void animateHide (const WAnimation &animation)
 Hides the widget using an animation. More...

void show ()
 Shows the widget. More...

void animateShow (const WAnimation &animation)
 Shows the widget using an animation. More...

void enable ()
 Enables the widget. More...

void disable ()
 Disable thes widget. More...

bool layoutSizeAware () const
 Returns whether the widget is layout size aware. More...

- Public Member Functions inherited from Wt::WObject
 WObject (WObject *parent=0)
 Create a WObject with a given parent object. More...

virtual ~WObject ()
 Destructor. More...

virtual std::string objectName () const
 Returns the object name. More...

void resetLearnedSlots ()
 Resets learned stateless slot implementations. More...

template<class T >
void resetLearnedSlot (void(T::*method)())
 Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)())
 Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())
 Declares a slot to be stateless and learn client-side behaviour in advance. More...

void isNotStateless ()
 Marks the current function as not stateless. More...

template<class T >
WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)
 Provides a JavaScript implementation for a method. More...

void addChild (WObject *child)
 Adds a child object. More...

const std::vector< WObject * > & children () const
 Returns the children.

WObjectparent () const
 Returns the parent object.


Static Public Member Functions

static std::string dateRenderer (const WString &format)
 Create a date renderer for the given format. More...

- Static Public Member Functions inherited from Wt::WWebWidget
static WString escapeText (const WString &text, bool newlinesToo=false)
 Escape HTML control characters in the text, to display literally (deprecated). More...

static std::string & escapeText (std::string &text, bool newlinestoo=false)
 Escape HTML control characters in the text, to display literally (deprecated). More...

static bool removeScript (WString &text)
 Remove tags/attributes from text that are not passive (deprecated). More...

static std::string jsStringLiteral (const std::string &v, char delimiter='\'')
 Turn a UTF8 encoded string into a JavaScript string literal. More...

- Static Public Member Functions inherited from Wt::WWidget
static WString tr (const char *key)
 Short hand for WString::tr() More...


Additional Inherited Members

- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()
 Typedef for a WObject method without arguments.

- Protected Member Functions inherited from Wt::Ext::Component
virtual void propagateSetEnabled (bool enabled)
 Propagates that a widget was enabled or disabled through children. More...

- Protected Member Functions inherited from Wt::WWebWidget
virtual void enableAjax ()
 Progresses to an Ajax-enabled widget. More...

virtual WStatelessSlot * getStateless (Method method)
 On-demand stateless slot implementation. More...

virtual void render (WFlags< RenderFlag > flags)
 Renders the widget. More...

- Protected Member Functions inherited from Wt::WWidget
void setLayoutSizeAware (bool sizeAware)
 Sets the widget to be aware of its size set by a layout manager. More...

virtual void layoutSizeChanged (int width, int height)
 Virtual method that indicates a size change. More...

 WWidget (WContainerWidget *parent=0)
 Creates a widget. More...

virtual void dropEvent (WDropEvent dropEvent)
 Handles a drop event. More...

virtual int boxPadding (Orientation orientation) const
 Returns the widget's built-in padding. More...

virtual int boxBorder (Orientation orientation) const
 Returns the widget's built-in border width. More...

void scheduleRender (WFlags< RepaintFlag > flags=0)
 Schedules rerendering of the widget. More...

- Static Protected Member Functions inherited from Wt::WObject
static WObjectsender ()
 Returns the sender of the current slot call. More...


Detailed Description

A widget that displays data in a table.

This class is an MVC view widget, which works in conjunction with a WAbstractItemModel for the data. The model may be set (and changed) using setModel().

The widget may be configured to allow the user to hide or resize columns, sort on column data, or reorder columns using drag&drop.

By default, the table is not editable. Use setEditor() to specify a form field that may be used for inline editing for a particular column. Changes are then reflected in the model().

The table supports single and multiple selection modes, that work on a row-level, or cell-level. The latter option is enforced when the table is editable.

By default, the data of the model is stored client-side, but this may be changed using setDataLocation() to be server-side. The latter option allows, in conjunction with a paging tool bar (see createPagingToolBar()) to support viewing (and editing) of large data sets.

Although TableView inherits from Container (through Panel), specifying a layout for adding or removing widgets is not supported. The Panel methods to specify tool bars, titles, and buttons are however supported.

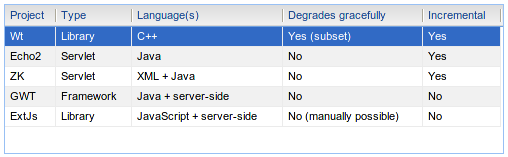

Example of a TableView

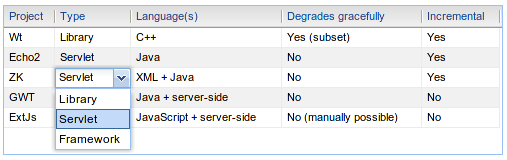

Example of a editing in a TableView using a ComboBox

CSS

A TableView has the table.x-grid3-row-table style classes.

Constructor & Destructor Documentation

◆ TableView()

Wt::Ext::TableView::TableView ( WContainerWidget parent = 0)

Create a new table view.

You should specify a model using setModel(WAbstractItemModel *).

Member Function Documentation

◆ alternatingRowColors()

bool Wt::Ext::TableView::alternatingRowColors ( ) const

Return if rows are rendered with alternating colors.

See also
setAlternatingRowColors(bool)

◆ cellClicked()

Signal<int, int>& Wt::Ext::TableView::cellClicked ( )

Signal emitted when a cell is clicked.

The signal arguments are row and column of the cell that is clicked.

See also
currentCellChanged()

◆ clearSelection()

void Wt::Ext::TableView::clearSelection ( )

Clear the current selection.

See also
setCurrentCell(int, int)

◆ columnAlignment()

AlignmentFlag Wt::Ext::TableView::columnAlignment ( int  column) const

Return the horizontal content alignment of a column.

See also
setColumnAlignment(int, AlignmentFlag)

◆ columnsMovable()

bool Wt::Ext::TableView::columnsMovable ( ) const

Return if columns are movable.

See also
setColumnsMovable(bool)

◆ columnWidth()

int Wt::Ext::TableView::columnWidth ( int  column) const

Return the column width.

See also
setColumnWidth(int, int)

◆ createPagingToolBar()

ToolBar * Wt::Ext::TableView::createPagingToolBar ( )

Create a paging tool bar.

Create a toolbar that provides paging controls for this table. You should configure the page size using setPageSize(int).

See also
setPageSize(int), setDataLocation(DataLocation)
setBottomToolBar(ToolBar *), setTopToolBar(ToolBar *)

◆ currentCellChanged()

Signal<int, int, int, int>& Wt::Ext::TableView::currentCellChanged ( )

Signal emitted when a new cell received focus.

This signal is only emitted when selectionBehavior() is SelectItems. The four arguments are row, column, prevrow, prevcolumn which hold respectively the location of the new focussed cell, and the previously focussed cell.

Values of -1 indicate 'no selection'.

◆ currentColumn()

int Wt::Ext::TableView::currentColumn ( ) const

Return the index of the column currently selected.

See also
currentRow(), setCurrentCell(int, int)

◆ currentRow()

int Wt::Ext::TableView::currentRow ( ) const

Return the index of the row currently selected.

See also
currentColumn(), setCurrentCell(int, int)

◆ dateRenderer()

std::string Wt::Ext::TableView::dateRenderer ( const WString format)
static

Create a date renderer for the given format.

The result is a JavaScript function that renders WDate (or more precisely, Ext.Date) values according to the given format, for use in setRenderer()

See also
setRenderer()
WDate::toString(const WString& format)

◆ enableColumnHiding()

void Wt::Ext::TableView::enableColumnHiding ( int  column,
bool  enable
)

Allow a column to be hidden through its context menu.

See also
isColumnHidingEnabled(int)

◆ hideColumn()

void Wt::Ext::TableView::hideColumn ( int  column)

◆ isColumnHidden()

bool Wt::Ext::TableView::isColumnHidden ( int  column) const

Return if a column is hidden.

See also
setColumnHidden(int, bool)

◆ isColumnHidingEnabled()

bool Wt::Ext::TableView::isColumnHidingEnabled ( int  column) const

Return if a column may be hidden through its context menu.

See also
enableColumnHiding(int, bool)

◆ isColumnSortable()

bool Wt::Ext::TableView::isColumnSortable ( int  column) const

Return if a column is sortable.

See also
setColumnSortable(int, bool)

◆ itemSelectionChanged()

Signal& Wt::Ext::TableView::itemSelectionChanged ( )

Signal emitted when the selection changes.

See also
currentRow(), currentColumn() when selectionBehavior() is SelectItems
selectedRows() when selectionBehavior() is SelectRows.

◆ model()

WAbstractItemModel* Wt::Ext::TableView::model ( ) const

Return the model.

See also
setModel(WAbstractItemModel *)

◆ pageSize()

int Wt::Ext::TableView::pageSize ( ) const

Return the page size.

See also
setPageSize(int)

◆ refresh()

void Wt::Ext::TableView::refresh ( )
virtual

Refresh the widget.

The refresh method is invoked when the locale is changed using WApplication::setLocale() or when the user hit the refresh button.

The widget must actualize its contents in response.

Note
This does *not* rerender the widget! Calling refresh() usually does not have any effect (unless you've reimplemented refresh() to attach to it an effect).

Reimplemented from Wt::Ext::Panel.

◆ resizeColumnsToContents()

void Wt::Ext::TableView::resizeColumnsToContents ( bool  onResize = false)

Let the table view resize columns to fit their contents.

By default, columns are sized using the column sizes that are provided. Using this method, this is changed to let columns expand to fit the entire table. By setting onResize, this is done also whenever the entire table or one of the columns is resized.

◆ selectedRows()

const std::vector<int>& Wt::Ext::TableView::selectedRows ( )

The list of rows that are currently selected.

This is the way to retrieve the list of currently selected rows when selectionBehavior() is SelectRows. This list is always empty when selectionBehavior() is SelectItems and you should use currentRow() and currentColumn() instead.

◆ selectionBehavior()

SelectionBehavior Wt::Ext::TableView::selectionBehavior ( ) const

Return the current selection behaviour.

See also
selectionBehavior()

◆ selectionMode()

SelectionMode Wt::Ext::TableView::selectionMode ( ) const

Return the current selection mode.

See also
setSelectionMode(SelectionMode)

◆ setAlternatingRowColors()

void Wt::Ext::TableView::setAlternatingRowColors ( bool  enable)

Render rows with alternating colors.

By defaults, all rows are rendered using the same color.

See also
alternatingRowColors()

◆ setAutoExpandColumn()

void Wt::Ext::TableView::setAutoExpandColumn ( int  column,
int  minWidth = 50,
int  maxWidth = 1000
)

Set the column which will auto-expand to take the remaining space.

By default the last column will do that.

◆ setColumnAlignment()

void Wt::Ext::TableView::setColumnAlignment ( int  column,
AlignmentFlag  alignment
)

Set the horizontal content alignment of a column.

The default value is AlignLeft. The alignment parameter is a horizontal alignment flag.

◆ setColumnHidden()

void Wt::Ext::TableView::setColumnHidden ( int  column,
bool  hide
)

Change the visibility of a column.

See also
isColumnHidden(int), enableColumnHiding(int, bool)

◆ setColumnsMovable()

void Wt::Ext::TableView::setColumnsMovable ( bool  movable)

Allow the user to move columns using drag and drop.

Setting movable to true, enables the user to move columns around by drag and drop.

Note: this currently breaks the CellSelection mode to record the view column number, but not the data column number.

See also
columnsMovable()

◆ setColumnSortable()

void Wt::Ext::TableView::setColumnSortable ( int  column,
bool  sortable
)

Allow a column to be sorted by the user.

See also
isColumnSortable(int)

◆ setColumnWidth()

void Wt::Ext::TableView::setColumnWidth ( int  column,
int  pixels
)

Set the column width (in pixels) for a column.

See also
columnWidth(int)

◆ setCurrentCell()

void Wt::Ext::TableView::setCurrentCell ( int  row,
int  column
)

Give a cell focus.

When selectionBehavior() is SelectRows, only the row argument is used, and the effect is to select a particular row.

Even when selectionMode() is ExtendedSelection, this method will first clear selection, and the result is that the given row,column will be the only selected cell.

See also
currentRow(), currentColumn(), currentCellChanged() signal
setSelectionMode(SelectionMode), setSelectionBehavior(SelectionBehavior)

◆ setDataLocation()

void Wt::Ext::TableView::setDataLocation ( DataLocation  dataLocation)

Configure the location of the data.

By default, data is stored at the client, and therefore entirely transmitted when rendering the table for the first time. Alternatively, the data may be kept at the server. Unless a paging tool bar is configured however, this will still cause the entire table to be anyway, after the table is rendered. When a paging tool bar is configured, only a single page of data is displayed, and transmitted, giving the best performance for big data sets.

See also
createPagingToolBar()

◆ setEditor()

void Wt::Ext::TableView::setEditor ( int  column,
FormField editor
)

Configure an editor for the given column.

Sets an inline editor that will be used to edit values in this column. The edited value will be reflected in the data model.

When configuring an editor, the selectionBehaviour() is set to SelectItems mode.

See also
LineEdit, NumberField, DateField, ComboBox

◆ setHighlightMouseOver()

void Wt::Ext::TableView::setHighlightMouseOver ( bool  highlight)

Configure if the row under the mouse will be highlighted.

By default, the row under the mouse is not highlighted.

See also
highlightMouseOver()

◆ setModel()

void Wt::Ext::TableView::setModel ( WAbstractItemModel model)

Specify the model.

You can change the model at any time, with the contraint that you should keep the same column configuration.

You may also reset the same model. This will result in retransmission of the model from scratch. In some cases, this could result in a higher preformance when you have removed many rows or modified a lot of data.

◆ setPageSize()

void Wt::Ext::TableView::setPageSize ( int  pageSize)

Configure a page size to browse the data page by page.

By setting a pageSize that is different from -1, the table view will display only single pages of the whole data set. You should probably add a paging tool bar to allow the user to scroll through the pages.

See also
pageSize(), createPagingToolBar()

◆ setRenderer()

void Wt::Ext::TableView::setRenderer ( int  column,
const std::string &  rendererJS
)

Configure a custom renderer for the given column.

Sets a JavaScript function to render values in the given column. The JavaScript function takes one argument (the value), which has a type that corresponds to the C++ type:

C++ typeJavaScript type
WStringstring
WDateExt.Date
number typenumber

An example of rendererJS for numerical data, which renders positive values in green and negative values in red could be:

function change(val) {
if (val > 0){
return '<span style="color:green;">' + val + '</span>';
} else if(val < 0) {
return '<span style="color:red;">' + val + '</span>';
}
return val;
}
See also
dateRenderer()

◆ setSelectionBehavior()

void Wt::Ext::TableView::setSelectionBehavior ( SelectionBehavior  behavior)

Set the selection behaviour.

The selection behavior defines the unit of selection. The selection behavior also determines the set of methods that must be used to inspect the current selection.

You may either:

◆ setSelectionMode()

void Wt::Ext::TableView::setSelectionMode ( SelectionMode  mode)

Set the selection mode.

The selection mode determines if no, only one, or multiple items may be selected.

When selectionBehavior() is SelectItems, ExtendedSelection is not supported.

◆ showColumn()

void Wt::Ext::TableView::showColumn ( int  column)

Generated on Tue Dec 15 2020 for the C++ Web Toolkit (Wt) by doxygen 1.8.13
