Wt::Ext::TabWidget Class Reference

A widget that organizes contents in tab panes. More...

#include <Wt/Ext/TabWidget>

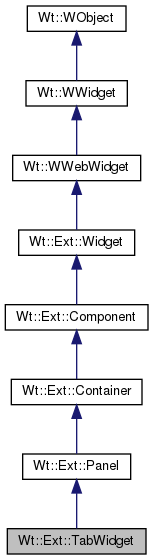

Inheritance diagram for Wt::Ext::TabWidget:
Inheritance graph
[legend]

Public Member Functions

 TabWidget (WContainerWidget *parent=0)
 Create a new TabWidget.

void addTab (WWidget *child, const WString &label)
 Add a new tab, with child as content, and the given label. More...

void addTab (Panel *panel)
 Add a new tab panel. More...

void removeTab (int index)
 Remove a tab. More...

int count () const
 Return the number of tabs.

Panelpanel (int index) const
 Return t the panel at the given tab index. More...

WWidgetwidget (int index) const
 Return the content widget at the given tab index. More...

int indexOf (WWidget *widget) const
 Return the index of the given widget/panel. More...

void setCurrentIndex (int index)
 Activate the tab at index. More...

int currentIndex () const
 Return the index of the activated tab. More...

void setCurrentWidget (WWidget *widget)
 Activate the tab showing the given widget More...

WWidgetcurrentWidget () const
 Return the widget of the activated tab. More...

void setTabEnabled (int index, bool enable)
 Enable or disable a tab. More...

bool isTabEnabled (int index) const
 Returns if a tab is enabled.

void setTabHidden (int index, bool hidden)
 Hide or show a tab. More...

bool isTabHidden (int index) const
 Return if a tab is hidden.

void setTabText (int index, const WString &label)
 Change the label for a tab. More...

const WStringtabText (int index) const
 Return the label for a tab. More...

void setTabToolTip (int index, const WString &tip)
 Set the tooltip for a tab. More...

const WString tabToolTip (int index) const
 Return the tooltip for a tab.

virtual void refresh ()
 Refresh the widget. More...

Signal< int > & currentChanged ()
 Signal emitted when the user activates a tab. More...

- Public Member Functions inherited from Wt::Ext::Panel
 Panel (WContainerWidget *parent=0)
 Create a new panel. More...

 ~Panel ()
 Destruct a panel.

void setTopToolBar (ToolBar *toolBar)
 Set a tool bar at the top of the panel. More...

ToolBartopToolBar () const
 Return the top tool bar. More...

void setBottomToolBar (ToolBar *bottomBar)
 Set a tool bar at the bottom of the panel. More...

ToolBarbottomToolBar () const
 Return the top tool bar. More...

void addFooterButton (Button *button)
 Add a button to the footer of the panel. More...

void removeFooterButton (Button *button)
 Remove a button from the footer of the panel. More...

const std::vector< Button * > & footerButtons () const
 Retrn the list of footer buttons. More...

void setTitle (const WString &title)
 Set a title. More...

const WStringtitle () const
 Get the title. More...

void setTitleBar (bool enable)
 Show or hide a title bar for the panel. More...

bool titleBar () const
 Get the title bar. More...

void setAnimate (bool on)
 Set to use animations for the expand/collapse operation. More...

bool animate () const
 Return if using animations for expand/collapse. More...

void setAutoScrollBars (bool on)
 Option to show scroll bars when needed. More...

bool autoScrollBars () const
 Return if showing scroll bars when needed. More...

void setBorder (bool show)
 Change the border around the panel. More...

bool border () const
 Get the border setting. More...

void setCollapsed (bool on)
 Set the panel expanded or callapsed. More...

void collapse ()
 Collapse the panel. More...

void expand ()
 Expand the panel. More...

bool isCollapsed () const
 Return if the panel is collapsed. More...

void setCollapsible (bool on)
 Allow the user to collapse/expand the panel. More...

bool isCollapsible () const
 Return if the user may collapse/expand the panel. More...

void setResizable (bool on)
 Allow the user to resize the panel. More...

bool isResizable () const
 Return if the user may resize the panel. More...

JSignalcollapsed ()
 Signal emitted when the panel is collapsed. More...

JSignalexpanded ()
 Signal emitted when the panel is expanded. More...

- Public Member Functions inherited from Wt::Ext::Container
 Container (WContainerWidget *parent=0)
 Create a new container. More...

virtual ~Container ()
 Destroy the container.

void setLayout (WLayout *layout)
 Set a layout manager for the container. More...

WLayoutlayout ()
 Get the layout manager that was set for the container. More...

- Public Member Functions inherited from Wt::Ext::Component
void setEnabled (bool how)
 Enables or disables the widget. More...

void enable ()
 Enables the widget.

void disable ()
 Disables the widget.

- Public Member Functions inherited from Wt::Ext::Widget
 ~Widget ()
 Delete a widget.

virtual void setHidden (bool hidden, const WAnimation &animation=WAnimation())
 Hides or shows the widget. More...

- Public Member Functions inherited from Wt::WWebWidget
 WWebWidget (WContainerWidget *parent=0)
 Construct a WebWidget with a given parent. More...

virtual void setPositionScheme (PositionScheme scheme)
 Sets the CSS position scheme. More...

virtual PositionScheme positionScheme () const
 Returns the CSS position scheme. More...

virtual void setOffsets (const WLength &offset, WFlags< Side > sides=All)
 Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength offset (Side s) const
 Returns a CSS offset. More...

virtual void resize (const WLength &width, const WLength &height)
 Resizes the widget. More...

virtual WLength width () const
 Returns the width. More...

virtual WLength height () const
 Returns the height. More...

virtual void setMinimumSize (const WLength &width, const WLength &height)
 Sets a minimum size. More...

virtual WLength minimumWidth () const
 Returns the minimum width. More...

virtual WLength minimumHeight () const
 Returns the minimum height. More...

virtual void setMaximumSize (const WLength &width, const WLength &height)
 Sets a maximum size. More...

virtual WLength maximumWidth () const
 Returns the maximum width. More...

virtual WLength maximumHeight () const
 Returns the maximum height. More...

virtual void setLineHeight (const WLength &height)
 Sets the CSS line height for contained text.

virtual WLength lineHeight () const
 Returns the CSS line height for contained text. More...

virtual void setFloatSide (Side s)
 Specifies a CSS float side. More...

virtual Side floatSide () const
 Returns the CSS float side. More...

virtual void setClearSides (WFlags< Side > sides)
 Sets the sides that should be cleared of floats. More...

virtual WFlags< SideclearSides () const
 Returns the sides that should remain empty. More...

virtual void setMargin (const WLength &margin, WFlags< Side > sides=All)
 Sets CSS margins around the widget. More...

virtual WLength margin (Side side) const
 Returns a CSS margin set. More...

virtual void setHiddenKeepsGeometry (bool enabled)
 Sets whether the widget keeps its geometry when hidden. More...

virtual bool hiddenKeepsGeometry () const
 Returns whether the widget keeps its geometry when hidden. More...

virtual bool isHidden () const
 Returns whether the widget is set hidden. More...

virtual bool isVisible () const
 Returns whether the widget is visible. More...

virtual void setDisabled (bool disabled)
 Sets whether the widget is disabled. More...

virtual bool isDisabled () const
 Returns whether the widget is set disabled. More...

virtual bool isEnabled () const
 Returns whether the widget is enabled. More...

virtual void setPopup (bool popup)
 Lets the widget overlay over other sibling widgets. More...

virtual bool isPopup () const
 Returns whether the widget is overlayed. More...

virtual void setInline (bool isInline)
 Sets whether the widget is displayed inline or as a block. More...

virtual bool isInline () const
 Returns whether the widget is displayed inline or as block. More...

virtual void setDecorationStyle (const WCssDecorationStyle &style)
 Sets a CSS decoration style. More...

virtual WCssDecorationStyledecorationStyle ()
 Returns the decoration style of this widget. More...

virtual void setStyleClass (const WString &styleClass)
 Sets (one or more) CSS style classes. More...

virtual WString styleClass () const
 Returns the CSS style class. More...

virtual void addStyleClass (const WString &styleClass, bool force=false)
 Adds a CSS style class. More...

virtual void removeStyleClass (const WString &styleClass, bool force=false)
 Removes a CSS style class. More...

virtual bool hasStyleClass (const WString &styleClass) const
 Returns whether the widget has a style class.

virtual void setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())
 Sets the vertical alignment. More...

virtual AlignmentFlag verticalAlignment () const
 Returns the vertical alignment. More...

virtual WLength verticalAlignmentLength () const
 Returns the fixed vertical alignment that was set. More...

virtual void setToolTip (const WString &text, TextFormat textFormat=PlainText)
 Sets a tooltip. More...

virtual void setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
 Enable deferred tooltip. More...

virtual WString toolTip () const
 Returns the tooltip.

virtual void setAttributeValue (const std::string &name, const WString &value)
 Sets an attribute value. More...

virtual WString attributeValue (const std::string &name) const
 Returns an attribute value. More...

virtual void setJavaScriptMember (const std::string &name, const std::string &value)
 Sets a JavaScript member. More...

virtual std::string javaScriptMember (const std::string &name) const
 Returns the value of a JavaScript member. More...

virtual void callJavaScriptMember (const std::string &name, const std::string &args)
 Calls a JavaScript member. More...

virtual void load ()
 Loads content just before the widget is used. More...

virtual bool loaded () const
 Returns whether this widget has been loaded. More...

virtual void setId (const std::string &id)
 Sets the CSS Id. More...

virtual WWidgetfind (const std::string &name)
 Finds a descendent widget by name. More...

virtual WWidgetfindById (const std::string &id)
 Finds a descendent widget by id.

virtual void setSelectable (bool selectable)
 Sets as selectable. More...

virtual void doJavaScript (const std::string &javascript)
 Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual const std::string id () const
 Returns the (unique) identifier for this object. More...

void setLoadLaterWhenInvisible (bool)
 Change the way the widget is loaded when invisible. More...

std::string htmlTagName () const
 returns the current html tag name More...

void setHtmlTagName (const std::string &tag)
 set the custom HTML tag name More...

const std::vector< WWidget * > & children () const
 Returns contained widgets. More...

SignalchildrenChanged ()
 Signal emitted when children have been added or removed. More...

virtual void setCanReceiveFocus (bool enabled)
 Sets whether the widget can receive focus. More...

virtual bool canReceiveFocus () const
 Returns whether the widget can receive focus. More...

virtual bool setFirstFocus ()
 Set focus on the widget's first descendant. More...

virtual void setFocus (bool focus)
 Sets focus. More...

virtual bool hasFocus () const
 Returns whether the widget currently has the focus.

virtual void setTabIndex (int index)
 Sets the tab index. More...

virtual int tabIndex () const
 Returns the tab index. More...

EventSignalblurred ()
 Signal emitted when the widget lost focus. More...

EventSignalfocussed ()
 Signal emitted when the widget recieved focus. More...

virtual bool scrollVisibilityEnabled () const WT_CXX11ONLY(final override)
 Returns whether scroll visibility detection is enabled for this widget. More...

virtual void setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(final override)
 Sets whether scroll visibility detection is enabled for this widget. More...

virtual int scrollVisibilityMargin () const WT_CXX11ONLY(final override)
 Returns the margin around the viewport within which the widget is considered visible. More...

virtual void setScrollVisibilityMargin (int margin) WT_CXX11ONLY(final override)
 Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > & scrollVisibilityChanged () WT_CXX11ONLY(final override)
 Signal triggered when the scroll visibility of this widget changes. More...

virtual bool isScrollVisible () const WT_CXX11ONLY(final override)
 Returns whether this widget is currently considered scroll visible. More...

virtual void setThemeStyleEnabled (bool enabled)
 Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool isThemeStyleEnabled () const
 Returns whether this widget is currently styled by the chosen theme. More...

- Public Member Functions inherited from Wt::WWidget
virtual ~WWidget ()
 Destructor. More...

WWidgetparent () const
 Returns the parent widget. More...

virtual void removeChild (WObject *child)
 Removes a child object. More...

void setWidth (const WLength &width)
 Sets the width. More...

void setHeight (const WLength &height)
 Sets the height. More...

virtual void positionAt (const WWidget *widget, Orientation orientation=Vertical)
 Positions a widget next to another widget. More...

virtual void toggleStyleClass (const WString &styleClass, bool add, bool force=false)
 Toggles a CSS style class.

std::string jsRef () const
 Returns a JavaScript expression to the corresponding DOM node. More...

void setFocus ()
 Sets focus. More...

virtual void acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
 Sets a mime type to be accepted for dropping. More...

virtual void stopAcceptDrops (const std::string &mimeType)
 Indicates that a mime type is no longer accepted for dropping. More...

virtual void setObjectName (const std::string &name)
 Sets an object name. More...

virtual void htmlText (std::ostream &out)
 Streams the (X)HTML representation. More...

bool isRendered () const
 Returns whether the widget is rendered. More...

void hide ()
 Hides the widget. More...

void animateHide (const WAnimation &animation)
 Hides the widget using an animation. More...

void show ()
 Shows the widget. More...

void animateShow (const WAnimation &animation)
 Shows the widget using an animation. More...

void enable ()
 Enables the widget. More...

void disable ()
 Disable thes widget. More...

bool layoutSizeAware () const
 Returns whether the widget is layout size aware. More...

- Public Member Functions inherited from Wt::WObject
 WObject (WObject *parent=0)
 Create a WObject with a given parent object. More...

virtual ~WObject ()
 Destructor. More...

virtual std::string objectName () const
 Returns the object name. More...

void resetLearnedSlots ()
 Resets learned stateless slot implementations. More...

template<class T >
void resetLearnedSlot (void(T::*method)())
 Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)())
 Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())
 Declares a slot to be stateless and learn client-side behaviour in advance. More...

void isNotStateless ()
 Marks the current function as not stateless. More...

template<class T >
WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)
 Provides a JavaScript implementation for a method. More...

void addChild (WObject *child)
 Adds a child object. More...

const std::vector< WObject * > & children () const
 Returns the children.

WObjectparent () const
 Returns the parent object.


Additional Inherited Members

- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()
 Typedef for a WObject method without arguments.

- Static Public Member Functions inherited from Wt::WWebWidget
static WString escapeText (const WString &text, bool newlinesToo=false)
 Escape HTML control characters in the text, to display literally (deprecated). More...

static std::string & escapeText (std::string &text, bool newlinestoo=false)
 Escape HTML control characters in the text, to display literally (deprecated). More...

static bool removeScript (WString &text)
 Remove tags/attributes from text that are not passive (deprecated). More...

static std::string jsStringLiteral (const std::string &v, char delimiter='\'')
 Turn a UTF8 encoded string into a JavaScript string literal. More...

- Static Public Member Functions inherited from Wt::WWidget
static WString tr (const char *key)
 Short hand for WString::tr() More...

- Protected Member Functions inherited from Wt::Ext::Component
virtual void propagateSetEnabled (bool enabled)
 Propagates that a widget was enabled or disabled through children. More...

- Protected Member Functions inherited from Wt::WWebWidget
virtual void enableAjax ()
 Progresses to an Ajax-enabled widget. More...

virtual WStatelessSlot * getStateless (Method method)
 On-demand stateless slot implementation. More...

virtual void render (WFlags< RenderFlag > flags)
 Renders the widget. More...

- Protected Member Functions inherited from Wt::WWidget
void setLayoutSizeAware (bool sizeAware)
 Sets the widget to be aware of its size set by a layout manager. More...

virtual void layoutSizeChanged (int width, int height)
 Virtual method that indicates a size change. More...

 WWidget (WContainerWidget *parent=0)
 Creates a widget. More...

virtual void dropEvent (WDropEvent dropEvent)
 Handles a drop event. More...

virtual int boxPadding (Orientation orientation) const
 Returns the widget's built-in padding. More...

virtual int boxBorder (Orientation orientation) const
 Returns the widget's built-in border width. More...

void scheduleRender (WFlags< RepaintFlag > flags=0)
 Schedules rerendering of the widget. More...

- Static Protected Member Functions inherited from Wt::WObject
static WObjectsender ()
 Returns the sender of the current slot call. More...


Detailed Description

A widget that organizes contents in tab panes.

This widget has an API that is similar to the WTabWidget.

Unlike WTabWidget, each tab is actually represented by a Panel, and methods are provided to add a panel directly (see addTab(Panel *)). The panel titles are then used as the tab labels.

The widget inherits from Panel, and uses a WDefaultLayout to contain the tab panels. Adding panels to the layout is equivalent to adding tabs to the tab widget.

Example of a TabWidget

Member Function Documentation

◆ addTab() [1/2]

void Wt::Ext::TabWidget::addTab ( WWidget child,
const WString label
)

Add a new tab, with child as content, and the given label.

This is implemented by creating a panel for the widget, and setting the panel title to be the label.

See also
addTab(Panel *), removeTab(int), widget(int)

◆ addTab() [2/2]

void Wt::Ext::TabWidget::addTab ( Panel panel)

Add a new tab panel.

The panel title is used as the tab label.

See also
addTab(WWidget *, const WString&)

◆ currentChanged()

Signal<int>& Wt::Ext::TabWidget::currentChanged ( )

Signal emitted when the user activates a tab.

The index of the newly activated tab is passed as an argument.

◆ currentIndex()

int Wt::Ext::TabWidget::currentIndex ( ) const

Return the index of the activated tab.

See also
setCurrentIndex(int)

◆ currentWidget()

WWidget * Wt::Ext::TabWidget::currentWidget ( ) const

Return the widget of the activated tab.

See also
setCurrentWidget(WWidget *), currentIndex()

◆ indexOf()

int Wt::Ext::TabWidget::indexOf ( WWidget widget) const

Return the index of the given widget/panel.

If the widget was not added to this tab widget, then -1 is returned.

◆ panel()

Panel * Wt::Ext::TabWidget::panel ( int  index) const

Return t the panel at the given tab index.

See also
widget(int)

◆ refresh()

void Wt::Ext::TabWidget::refresh ( )
virtual

Refresh the widget.

The refresh method is invoked when the locale is changed using WApplication::setLocale() or when the user hit the refresh button.

The widget must actualize its contents in response.

Note
This does *not* rerender the widget! Calling refresh() usually does not have any effect (unless you've reimplemented refresh() to attach to it an effect).

Reimplemented from Wt::Ext::Panel.

◆ removeTab()

void Wt::Ext::TabWidget::removeTab ( int  index)

Remove a tab.

See also
addTab(Panel *), addTab(WWidget *, const WString&)
indexOf(WWidget *)

◆ setCurrentIndex()

void Wt::Ext::TabWidget::setCurrentIndex ( int  index)

Activate the tab at index.

See also
setCurrentWidget(WWidget *), currentIndex()
currentChanged() signal

◆ setCurrentWidget()

void Wt::Ext::TabWidget::setCurrentWidget ( WWidget widget)

Activate the tab showing the given widget

This is equivalent to setCurrentIndex(indexOf(widget))

See also
currentWidget(), setCurrentIndex(int)

◆ setTabEnabled()

void Wt::Ext::TabWidget::setTabEnabled ( int  index,
bool  enable
)

Enable or disable a tab.

Enables or disables the tab at index. A disabled tab cannot be activated.

◆ setTabHidden()

void Wt::Ext::TabWidget::setTabHidden ( int  index,
bool  hidden
)

Hide or show a tab.

Hides are shows the tab at index.

◆ setTabText()

void Wt::Ext::TabWidget::setTabText ( int  index,
const WString label
)

Change the label for a tab.

This is equivalent to panel(index)->setTitle(label);

See also
tabText(int)

◆ setTabToolTip()

void Wt::Ext::TabWidget::setTabToolTip ( int  index,
const WString tip
)

Set the tooltip for a tab.

The tooltip is shown when the user hovers over the label.

This seems currently broken in extjs 2.0.

◆ tabText()

const WString & Wt::Ext::TabWidget::tabText ( int  index) const

Return the label for a tab.

See also
setTabText(int, const WString&)

◆ widget()

WWidget * Wt::Ext::TabWidget::widget ( int  index) const

Return the content widget at the given tab index.

See also
panel(int)

Generated on Tue Dec 15 2020 for the C++ Web Toolkit (Wt) by doxygen 1.8.13
