An model that manages a list of strings. More...

#include <Wt/WStringListModel.h>

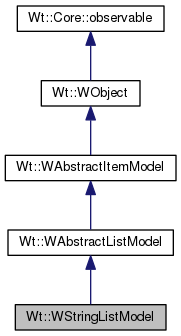

Inheritance diagram for Wt::WStringListModel:

[legend]

Public Member Functions
	WStringListModel ()
	Creates a new empty string list model.

	WStringListModel (const std::vector< WString > &strings)
	Creates a new string list model.

	~WStringListModel ()
	Destructor.

void	setStringList (const std::vector< WString > &strings)
	Sets a new string list. More...

void	insertString (int row, const WString &string)
	Inserts a string. More...

void	addString (const WString &string)
	Adds a string. More...

const std::vector< WString > &	stringList () const
	Returns the string list. More...

void	setFlags (int index, WFlags< ItemFlag > flags)
	Sets model flags for an item. More...

virtual WFlags< ItemFlag >	flags (const WModelIndex &index) const override
	Returns the flags for an item. More...

virtual bool	setData (const WModelIndex &index, const cpp17::any &value, ItemDataRole role=ItemDataRole::Edit) override
	Sets data at the given model index. More...

virtual cpp17::any	data (const WModelIndex &index, ItemDataRole role=ItemDataRole::Display) const override
	Returns data at a specific model index. More...

virtual int	rowCount (const WModelIndex &parent=WModelIndex()) const override
	Returns the number of rows. More...

virtual bool	insertRows (int row, int count, const WModelIndex &parent=WModelIndex()) override
	Inserts one or more rows. More...

virtual bool	removeRows (int row, int count, const WModelIndex &parent=WModelIndex()) override
	Removes rows. More...

virtual void	sort (int column, SortOrder order=SortOrder::Ascending) override
	Sorts the model according to a particular column. More...

Public Member Functions inherited from Wt::WAbstractListModel
	WAbstractListModel ()
	Create a new abstract list model.

	~WAbstractListModel ()
	Destructor.

virtual WModelIndex	parent (const WModelIndex &index) const override
	Returns the parent for a model index. More...

virtual WModelIndex	index (int row, int column=0, const WModelIndex &parent=WModelIndex()) const override
	Returns the child index for the given row and column. More...

virtual int	columnCount (const WModelIndex &parent=WModelIndex()) const override
	Returns the number of columns. More...

Public Member Functions inherited from Wt::WAbstractItemModel
	WAbstractItemModel ()
	Creates a new data model.

virtual WFlags< HeaderFlag >	headerFlags (int section, Orientation orientation=Orientation::Horizontal) const
	Returns the flags for a header. More...

virtual bool	hasChildren (const WModelIndex &index) const
	Returns if there are children at an index. More...

virtual DataMap	itemData (const WModelIndex &index) const
	Returns all data at a specific index. More...

virtual cpp17::any	headerData (int section, Orientation orientation=Orientation::Horizontal, ItemDataRole role=ItemDataRole::Display) const
	Returns the row or column header data. More...

virtual WModelIndexList	match (const WModelIndex &start, ItemDataRole role, const cpp17::any &value, int hits=-1, WFlags< MatchFlag > flags=WFlags< MatchFlag >(MatchFlag::StartsWith\|MatchFlag::Wrap)) const
	Returns an index list for data items that match. More...

cpp17::any	data (int row, int column, ItemDataRole role=ItemDataRole::Display, const WModelIndex &parent=WModelIndex()) const
	Returns the data item at the given column and row. More...

virtual bool	hasIndex (int row, int column, const WModelIndex &parent=WModelIndex()) const
	Returns if an index at the given position is valid (i.e. falls within the column-row bounds). More...

virtual bool	insertColumns (int column, int count, const WModelIndex &parent=WModelIndex())
	Inserts one or more columns. More...

virtual bool	removeColumns (int column, int count, const WModelIndex &parent=WModelIndex())
	Removes columns. More...

virtual bool	setItemData (const WModelIndex &index, const DataMap &values)
	Sets data at the given model index. More...

virtual bool	setHeaderData (int section, Orientation orientation, const cpp17::any &value, ItemDataRole role=ItemDataRole::Edit)
	Sets header data for a column or row. More...

bool	setHeaderData (int section, const cpp17::any &value)
	Sets column header data. More...

virtual void	expandColumn (int column)
	Expands a column. More...

virtual void	collapseColumn (int column)
	Collapses a column. More...

virtual void *	toRawIndex (const WModelIndex &index) const
	Converts a model index to a raw pointer that remains valid while the model's layout is changed. More...

virtual WModelIndex	fromRawIndex (void *rawIndex) const
	Converts a raw pointer to a model index. More...

virtual std::string	mimeType () const
	Returns a mime-type for dragging a set of indexes. More...

virtual std::vector< std::string >	acceptDropMimeTypes () const
	Returns a list of mime-types that could be accepted for a drop event. More...

virtual void	dropEvent (const WDropEvent &e, DropAction action, int row, int column, const WModelIndex &parent)
	Handles a drop event. More...

bool	insertColumn (int column, const WModelIndex &parent=WModelIndex())
	Inserts one column. More...

bool	insertRow (int row, const WModelIndex &parent=WModelIndex())
	Inserts one row. More...

bool	removeColumn (int column, const WModelIndex &parent=WModelIndex())
	Removes one column. More...

bool	removeRow (int row, const WModelIndex &parent=WModelIndex())
	Removes one row. More...

bool	setData (int row, int column, const cpp17::any &value, ItemDataRole role=ItemDataRole::Edit, const WModelIndex &parent=WModelIndex())
	Sets data at the given row and column. More...

virtual Signal< WModelIndex, int, int > &	columnsAboutToBeInserted ()
	Signal emitted before a number of columns will be inserted. More...

virtual Signal< WModelIndex, int, int > &	columnsAboutToBeRemoved ()
	Signal emitted before a number of columns will be removed. More...

virtual Signal< WModelIndex, int, int > &	columnsInserted ()
	Signal emitted after a number of columns were inserted. More...

virtual Signal< WModelIndex, int, int > &	columnsRemoved ()
	Signal emitted after a number of columns were removed. More...

virtual Signal< WModelIndex, int, int > &	rowsAboutToBeInserted ()
	Signal emitted before a number of rows will be inserted. More...

virtual Signal< WModelIndex, int, int > &	rowsAboutToBeRemoved ()
	Signal emitted before a number of rows will be removed. More...

virtual Signal< WModelIndex, int, int > &	rowsInserted ()
	Signal emitted after a number of rows were inserted. More...

virtual Signal< WModelIndex, int, int > &	rowsRemoved ()
	Signal emitted after a number of rows were removed. More...

virtual Signal< WModelIndex, WModelIndex > &	dataChanged ()
	Signal emitted when some data was changed. More...

virtual Signal< Orientation, int, int > &	headerDataChanged ()
	Signal emitted when some header data was changed. More...

virtual Signal &	layoutAboutToBeChanged ()
	Signal emitted when the layout is about to be changed. More...

virtual Signal &	layoutChanged ()
	Signal emitted when the layout is changed. More...

virtual Signal &	modelReset ()
	Signal emitted when the model was reset. More...

Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)
	Add a child WObject whose lifetime is determined by this WObject.

template<typename Child >
Child *	addChild (std::unique_ptr< Child > child)
	Add a child WObject, returning a raw pointer. More...

std::unique_ptr< WObject >	removeChild (WObject *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject.

virtual const std::string	id () const
	Returns the (unique) identifier for this object. More...

virtual void	setObjectName (const std::string &name)
	Sets an object name. More...

virtual std::string	objectName () const
	Returns the object name. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

Public Member Functions inherited from Wt::Core::observable
	observable ()
	Default constructor.

virtual	~observable ()
	Destructor. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...))
	Protects a method call against object destruction. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...) const) const
	Protects a const method call against object destruction. More...

template<typename Function >
auto	bindSafe (const Function &function)
	Protects a function against object destruction. More...

Additional Inherited Members
Public Types inherited from Wt::WAbstractItemModel
typedef std::map< ItemDataRole, cpp17::any >	DataMap
	Data map. More...

Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Protected Member Functions inherited from Wt::WAbstractItemModel
void	reset ()
	Resets the model and invalidate any data. More...

WModelIndex	createIndex (int row, int column, void *ptr) const
	Creates a model index for the given row and column. More...

WModelIndex	createIndex (int row, int column,::uint64_t id) const
	Creates a model index for the given row and column. More...

void	beginInsertColumns (const WModelIndex &parent, int first, int last)
	Method to be called before inserting columns. More...

void	beginInsertRows (const WModelIndex &parent, int first, int last)
	Method to be called before inserting rows. More...

void	beginRemoveColumns (const WModelIndex &parent, int first, int last)
	Method to be called before removing columns. More...

void	beginRemoveRows (const WModelIndex &parent, int first, int last)
	Method to be called before removing rows. More...

void	endInsertColumns ()
	Method to be called after inserting columns. More...

void	endInsertRows ()
	Method to be called after inserting rows. More...

void	endRemoveColumns ()
	Method to be called after removing columns. More...

void	endRemoveRows ()
	Method to be called after removing rows. More...

Protected Member Functions inherited from Wt::WObject
virtual WStatelessSlot *	getStateless (Method method)
	On-demand stateless slot implementation. More...

Detailed Description

An model that manages a list of strings.

This model only manages a unidimensional list of items and is optimized for usage by view widgets such as combo-boxes.

It supports all features of a typical item model, including data for multiple roles, editing and addition and removal of data rows.

You can populate the model by passing a list of strings to its consructor, or by using the setStringList() method. You can set or retrieve data using the setData() and data() methods, and add or remove data using the insertRows() and removeRows() methods.

See also: WComboBox, WSelectionBox

Member Function Documentation

void Wt::WStringListModel::addString ( const WString & string )

Adds a string.

See also: setStringList()

cpp17::any Wt::WStringListModel::data	(	const WModelIndex &	index,
		ItemDataRole	role = `ItemDataRole::Display`
	)		const

overridevirtual

Returns data at a specific model index.

Return data for a given role at a given index.

You should check the role to decide what data to return. Usually a View class will ask for data for several roles which affect not only the contents (Wt::ItemDataRole::Display) but also icons (Wt::ItemDataRole::Decoration), URLs (Wt::ItemDataRole::Link), and other visual aspects. If your item does not specify data for a particular role, it should simply return a Wt::cpp17::any().

See also: flags(), headerData(), setData()

Implements Wt::WAbstractItemModel.

WFlags< ItemFlag > Wt::WStringListModel::flags ( const WModelIndex & index ) const

overridevirtual

Returns the flags for an item.

This method is reimplemented to return flags set in setFlags().

See also: setFlags()

Reimplemented from Wt::WAbstractItemModel.

bool Wt::WStringListModel::insertRows	(	int	row,
		int	count,
		const WModelIndex &	parent = `WModelIndex()`
	)

overridevirtual

Inserts one or more rows.

In models that support row insertion, this inserts count rows, starting at row, and returns true if the operation was successful. The new rows are inserted under parent.

If parent had no children, then a single column is added with count rows.

The default implementation returns false.

The model implementation must call beginInsertRows() and endInsertRows() before and after the operation whenever its geometry is changed by inserting rows. This emits signals for views to properly react to these changes.

See also: insertColumns(), removeRows(), beginInsertRows(), endInsertRows()

Reimplemented from Wt::WAbstractItemModel.

void Wt::WStringListModel::insertString	(	int	row,
		const WString &	string
	)

Inserts a string.

See also: setStringList()

bool Wt::WStringListModel::removeRows	(	int	row,
		int	count,
		const WModelIndex &	parent = `WModelIndex()`
	)

overridevirtual

Removes rows.

Returns true if the operation was successful.

The default implementation returns false.

The model implementation must call beginRemoveRows() and endRemoveRows() before and after the operation whenever its geometry is changed by removing rows. This emits signals for views to properly react to these changes.

See also: removeColumns(), insertRows(), beginRemoveRows(), endRemoveRows()

Reimplemented from Wt::WAbstractItemModel.

int Wt::WStringListModel::rowCount ( const WModelIndex & parent = WModelIndex() ) const

overridevirtual

Returns the number of rows.

This returns the number of rows at index parent.

See also: columnCount()

Implements Wt::WAbstractItemModel.

bool Wt::WStringListModel::setData	(	const WModelIndex &	index,
		const cpp17::any &	value,
		ItemDataRole	role = `ItemDataRole::Edit`
	)

overridevirtual

Sets data at the given model index.

Returns true if the operation was successful.

The default implementation returns false.

The model implementation must emit the dataChanged() signal after data was changed.

See also: data()

Reimplemented from Wt::WAbstractItemModel.

void Wt::WStringListModel::setFlags	(	int	index,
		WFlags< ItemFlag >	flags
	)

Sets model flags for an item.

The default item flags are ItemFlag::Selectable | ItemFlag::Editable.

void Wt::WStringListModel::setStringList ( const std::vector< WString > & strings )

Sets a new string list.

Replaces the current string list with a new list.

See also: dataChanged(); addString()

void Wt::WStringListModel::sort	(	int	column,
		SortOrder	order = `SortOrder::Ascending`
	)

overridevirtual

Sorts the model according to a particular column.

If the model supports sorting, then it should emit the layoutAboutToBeChanged() signal, rearrange its items, and afterwards emit the layoutChanged() signal.

See also: layoutAboutToBeChanged(), layoutChanged()

Reimplemented from Wt::WAbstractItemModel.

const std::vector<WString>& Wt::WStringListModel::stringList ( ) const

Returns the string list.

See also: setStringList()

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
