Wt::WDialog Class Reference

A WDialog shows a dialog. More...

#include <Wt/WDialog>

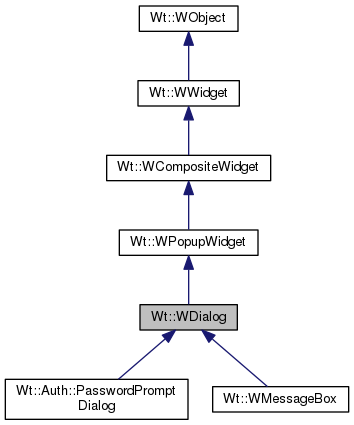

Inheritance diagram for Wt::WDialog:
Inheritance graph
[legend]

Public Types

- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()
 Typedef for a WObject method without arguments.


Public Member Functions

 WDialog (WObject *parent=0)
 Constructs a new dialog. More...

 WDialog (const WString &windowTitle, WObject *parent=0)
 Constructs a dialog with a given window title. More...

 ~WDialog ()
 Deletes a dialog.

void setWindowTitle (const WString &title)
 Sets the dialog window title. More...

WString windowTitle () const
 Returns the dialog window title. More...

void setCaption (const WString &caption)
 Sets the dialog caption (deprecated). More...

WString caption () const
 Returns the dialog caption (deprecated). More...

void setTitleBarEnabled (bool enabled)
 Enables or disables the title bar. More...

bool isTitleBarEnabled () const
 Returns whether the title bar is enabled. More...

WContainerWidgettitleBar () const
 Returns the dialog title bar container. More...

WContainerWidgetcontents () const
 Returns the dialog contents container. More...

WContainerWidgetfooter () const
 Returns the dialog footer container. More...

DialogCode exec (const WAnimation &animation=WAnimation())
 Executes the dialog in a recursive event loop. More...

virtual void done (DialogCode r)
 Stops the dialog. More...

virtual void accept ()
 Closes the dialog, with result is Accepted. More...

virtual void reject ()
 Closes the dialog, with result is Rejected. More...

void rejectWhenEscapePressed (bool enable=true)
 Lets pressing the escape key reject the dialog. More...

Signal< DialogCode > & finished ()
 Signal emitted when the dialog is closed. More...

DialogCode result () const
 Returns the result that was set for this dialog. More...

void setModal (bool modal)
 Sets whether the dialog is modal. More...

bool isModal () const
 Returns whether the dialog is modal. More...

void setResizable (bool resizable)
 Adds a resize handle to the dialog. More...

bool resizable () const
 Returns whether the dialog has a resize handle. More...

void setMovable (bool movable)
 Allows the dialog to be moved. More...

bool movable () const
 Returns whether the dialog can be moved. More...

void setClosable (bool closable)
 Adds a close button to the titlebar. More...

bool closable () const
 Returns whether the dialog can be closed.

void setAutoFocus (bool enable)
 Set focus on the first widget in the dialog.

virtual void setHidden (bool hidden, const WAnimation &animation=WAnimation())
 Hides or shows the widget. More...

virtual void positionAt (const WWidget *widget, Orientation orientation=Vertical)
 Positions a widget next to another widget. More...

void positionAt (const Wt::WMouseEvent &ev)
 Set the position of the widget at the mouse position.

void raiseToFront ()
 Raises this dialog to be the top-most dialog.

virtual void setMinimumSize (const WLength &width, const WLength &height)
 Sets a minimum size. More...

virtual void setMaximumSize (const WLength &width, const WLength &height)
 Sets a maximum size. More...

JSignal< int, int > & resized ()
 Signal emitted when the dialog is being resized by the user. More...

JSignal< int, int > & moved ()
 Signal emitted when the dialog is being moved by the user. More...

EventSignal< WTouchEvent > & touchStarted ()
 Event signal emitted when a finger is placed on the screen.

EventSignal< WTouchEvent > & touchEnded ()
 Event signal emitted when a finger is removed from the screen.

EventSignal< WTouchEvent > & touchMoved ()
 Event signal emitted when a finger, which is already placed on the screen, is moved across the screen.

keyboard and mouse events
EventSignal< WKeyEvent > & keyWentDown ()
 Event signal emitted when a keyboard key is pushed down. More...

EventSignal< WKeyEvent > & keyPressed ()
 Event signal emitted when a "character" was entered. More...

EventSignal< WKeyEvent > & keyWentUp ()
 Event signal emitted when a keyboard key is released. More...

EventSignalenterPressed ()
 Event signal emitted when enter was pressed. More...

EventSignalescapePressed ()
 Event signal emitted when escape was pressed. More...

- Public Member Functions inherited from Wt::WPopupWidget
 WPopupWidget (WWidget *impl, WObject *parent=0)
 Constructor. More...

virtual ~WPopupWidget ()
 Destructor.

void setAnchorWidget (WWidget *widget, Orientation orientation=Vertical)
 Sets an anchor widget. More...

Orientation orientation () const
 Returns the orientation. More...

void setTransient (bool transient, int autoHideDelay=0)
 Sets transient property. More...

bool isTransient () const
 Returns whether the popup is transient. More...

int autoHideDelay () const
 Returns the auto-hide delay. More...

void setDeleteWhenHidden (bool enabled)
 Lets the popup delete itself when hidden. More...

bool isDeleteWhenHidden () const
 Returns whether auto delete is enabled. More...

Signalhidden ()
 Signal emitted when the popup is hidden. More...

Signalshown ()
 Signal emitted when the popup is shown. More...

- Public Member Functions inherited from Wt::WCompositeWidget
 WCompositeWidget (WContainerWidget *parent=0)
 Creates a WCompositeWidget. More...

 WCompositeWidget (WWidget *implementation, WContainerWidget *parent)
 Creates a WCompositeWidget with given implementation. More...

virtual void setObjectName (const std::string &name)
 Sets an object name. More...

virtual std::string objectName () const
 Returns the object name. More...

virtual const std::string id () const
 Returns the (unique) identifier for this object. More...

virtual void setPositionScheme (PositionScheme scheme)
 Sets the CSS position scheme. More...

virtual PositionScheme positionScheme () const
 Returns the CSS position scheme. More...

virtual void setOffsets (const WLength &offset, WFlags< Side > sides=All)
 Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength offset (Side s) const
 Returns a CSS offset. More...

virtual void resize (const WLength &width, const WLength &height)
 Resizes the widget. More...

virtual WLength width () const
 Returns the width. More...

virtual WLength height () const
 Returns the height. More...

virtual WLength minimumWidth () const
 Returns the minimum width. More...

virtual WLength minimumHeight () const
 Returns the minimum height. More...

virtual WLength maximumWidth () const
 Returns the maximum width. More...

virtual WLength maximumHeight () const
 Returns the maximum height. More...

virtual void setLineHeight (const WLength &height)
 Sets the CSS line height for contained text.

virtual WLength lineHeight () const
 Returns the CSS line height for contained text. More...

virtual void setFloatSide (Side s)
 Specifies a CSS float side. More...

virtual Side floatSide () const
 Returns the CSS float side. More...

virtual void setClearSides (WFlags< Side > sides)
 Sets the sides that should be cleared of floats. More...

virtual WFlags< SideclearSides () const
 Returns the sides that should remain empty. More...

virtual void setMargin (const WLength &margin, WFlags< Side > sides=All)
 Sets CSS margins around the widget. More...

virtual WLength margin (Side side) const
 Returns a CSS margin set. More...

virtual void setHiddenKeepsGeometry (bool enabled)
 Sets whether the widget keeps its geometry when hidden. More...

virtual bool hiddenKeepsGeometry () const
 Returns whether the widget keeps its geometry when hidden. More...

virtual bool isHidden () const
 Returns whether the widget is set hidden. More...

virtual bool isVisible () const
 Returns whether the widget is visible. More...

virtual void setDisabled (bool disabled)
 Sets whether the widget is disabled. More...

virtual bool isDisabled () const
 Returns whether the widget is set disabled. More...

virtual bool isEnabled () const
 Returns whether the widget is enabled. More...

virtual void setPopup (bool popup)
 Lets the widget overlay over other sibling widgets. More...

virtual bool isPopup () const
 Returns whether the widget is overlayed. More...

virtual void setInline (bool isInline)
 Sets whether the widget is displayed inline or as a block. More...

virtual bool isInline () const
 Returns whether the widget is displayed inline or as block. More...

virtual void setDecorationStyle (const WCssDecorationStyle &style)
 Sets a CSS decoration style. More...

virtual WCssDecorationStyledecorationStyle ()
 Returns the decoration style of this widget. More...

virtual void setStyleClass (const WString &styleClass)
 Sets (one or more) CSS style classes. More...

virtual WString styleClass () const
 Returns the CSS style class. More...

virtual void addStyleClass (const WString &styleClass, bool force=false)
 Adds a CSS style class. More...

virtual void removeStyleClass (const WString &styleClass, bool force=false)
 Removes a CSS style class. More...

virtual bool hasStyleClass (const WString &styleClass) const
 Returns whether the widget has a style class.

virtual void setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength::Auto)
 Sets the vertical alignment. More...

virtual AlignmentFlag verticalAlignment () const
 Returns the vertical alignment. More...

virtual WLength verticalAlignmentLength () const
 Returns the fixed vertical alignment that was set. More...

virtual void setToolTip (const WString &text, TextFormat textFormat=PlainText)
 Sets a tooltip. More...

virtual WString toolTip () const
 Returns the tooltip.

virtual void setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
 Enable deferred tooltip. More...

virtual void refresh ()
 Refresh the widget. More...

virtual void setAttributeValue (const std::string &name, const WString &value)
 Sets an attribute value. More...

virtual WString attributeValue (const std::string &name) const
 Returns an attribute value. More...

virtual void setJavaScriptMember (const std::string &name, const std::string &value)
 Sets a JavaScript member. More...

virtual std::string javaScriptMember (const std::string &name) const
 Returns the value of a JavaScript member. More...

virtual void callJavaScriptMember (const std::string &name, const std::string &args)
 Calls a JavaScript member. More...

virtual void load ()
 Loads content just before the widget is used. More...

virtual bool loaded () const
 Returns whether this widget has been loaded. More...

virtual void setCanReceiveFocus (bool enabled)
 Sets whether the widget can receive focus. More...

virtual bool canReceiveFocus () const
 Returns whether the widget can receive focus. More...

virtual void setFocus (bool focus)
 Sets focus. More...

virtual bool setFirstFocus ()
 Set focus on the widget's first descendant. More...

virtual bool hasFocus () const
 Returns whether the widget currently has the focus.

virtual void setTabIndex (int index)
 Sets the tab index. More...

virtual int tabIndex () const
 Returns the tab index. More...

virtual void setId (const std::string &id)
 Sets the CSS Id. More...

virtual WWidgetfind (const std::string &name)
 Finds a descendent widget by name. More...

virtual WWidgetfindById (const std::string &name)
 Finds a descendent widget by id.

virtual void setSelectable (bool selectable)
 Sets as selectable. More...

virtual void doJavaScript (const std::string &js)
 Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual void propagateSetEnabled (bool enabled)
 Propagates that a widget was enabled or disabled through children. More...

virtual bool scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)
 Returns whether scroll visibility detection is enabled for this widget. More...

virtual void setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)
 Sets whether scroll visibility detection is enabled for this widget. More...

virtual int scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)
 Returns the margin around the viewport within which the widget is considered visible. More...

virtual void setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)
 Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > & scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)
 Signal triggered when the scroll visibility of this widget changes. More...

virtual bool isScrollVisible () const WT_CXX11ONLY(finaloverride)
 Returns whether this widget is currently considered scroll visible. More...

virtual void setThemeStyleEnabled (bool enabled)
 Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool isThemeStyleEnabled () const
 Returns whether this widget is currently styled by the chosen theme. More...

- Public Member Functions inherited from Wt::WWidget
virtual ~WWidget ()
 Destructor. More...

WWidgetparent () const
 Returns the parent widget. More...

virtual void removeChild (WObject *child)
 Removes a child object. More...

void setWidth (const WLength &width)
 Sets the width. More...

void setHeight (const WLength &height)
 Sets the height. More...

virtual void toggleStyleClass (const WString &styleClass, bool add, bool force=false)
 Toggles a CSS style class.

std::string jsRef () const
 Returns a JavaScript expression to the corresponding DOM node. More...

void setFocus ()
 Sets focus. More...

virtual void acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
 Sets a mime type to be accepted for dropping. More...

virtual void stopAcceptDrops (const std::string &mimeType)
 Indicates that a mime type is no longer accepted for dropping. More...

virtual void htmlText (std::ostream &out)
 Streams the (X)HTML representation. More...

bool isRendered () const
 Returns whether the widget is rendered. More...

void hide ()
 Hides the widget. More...

void animateHide (const WAnimation &animation)
 Hides the widget using an animation. More...

void show ()
 Shows the widget. More...

void animateShow (const WAnimation &animation)
 Shows the widget using an animation. More...

void enable ()
 Enables the widget. More...

void disable ()
 Disable thes widget. More...

bool layoutSizeAware () const
 Returns whether the widget is layout size aware. More...

- Public Member Functions inherited from Wt::WObject
 WObject (WObject *parent=0)
 Create a WObject with a given parent object. More...

virtual ~WObject ()
 Destructor. More...

void resetLearnedSlots ()
 Resets learned stateless slot implementations. More...

template<class T >
void resetLearnedSlot (void(T::*method)())
 Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)())
 Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())
 Declares a slot to be stateless and learn client-side behaviour in advance. More...

void isNotStateless ()
 Marks the current function as not stateless. More...

template<class T >
WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)
 Provides a JavaScript implementation for a method. More...

void addChild (WObject *child)
 Adds a child object. More...

const std::vector< WObject * > & children () const
 Returns the children.

WObjectparent () const
 Returns the parent object.


Protected Member Functions

virtual void render (WFlags< RenderFlag > flags)
 Renders the widget. More...

- Protected Member Functions inherited from Wt::WCompositeWidget
virtual void enableAjax ()
 Progresses to an Ajax-enabled widget. More...

void setImplementation (WWidget *widget)
 Set the implementation widget. More...

WWidgetimplementation ()
 Get the implementation widget. More...

virtual int boxPadding (Orientation orientation) const
 Returns the widget's built-in padding. More...

virtual int boxBorder (Orientation orientation) const
 Returns the widget's built-in border width. More...

- Protected Member Functions inherited from Wt::WWidget
void setLayoutSizeAware (bool sizeAware)
 Sets the widget to be aware of its size set by a layout manager. More...

virtual void layoutSizeChanged (int width, int height)
 Virtual method that indicates a size change. More...

 WWidget (WContainerWidget *parent=0)
 Creates a widget. More...

virtual void dropEvent (WDropEvent dropEvent)
 Handles a drop event. More...

void scheduleRender (WFlags< RepaintFlag > flags=0)
 Schedules rerendering of the widget. More...

virtual WStatelessSlot * getStateless (Method method)
 On-demand stateless slot implementation. More...


Additional Inherited Members

- Static Public Member Functions inherited from Wt::WWidget
static WString tr (const char *key)
 Short hand for WString::tr() More...

- Static Protected Member Functions inherited from Wt::WObject
static WObjectsender ()
 Returns the sender of the current slot call. More...


Detailed Description

A WDialog shows a dialog.

By default, the dialog is modal. A modal window blocks the user interface, and does not allow the user to interact with any other part of the user interface until the dialog is closed (this is enforced at the server side, so you may rely on this behavior).

A modal dialog can be instantiated synchronously or asynchronously. A non-modal dialog can only be instantiated asynchronously.

When using a dialog asynchronously, there is no API call that waits for the dialog to be closed. Then, the usage is similar to instantiating any other widget. The dialog may be closed by calling accept(), reject() or done() (or connecting a signal to one of these methods). This will hide the dialog and emit the finished() signal, which you then can listen for to process the dialog result and delete the dialog. Unlike other widgets, a dialog does not need to be added to a parent widget, but is hidden by default. You must use the method show() or setHidden(false) to show the dialog.

The synchronous use of a dialog involves a call to exec() which will block (suspend the thread) until the dialog window is closed, and return the dialog result. Events within dialog are handled using a so-called recursive event loop. Typically, an OK button will be connected to accept(), and in some cases a Cancel button to reject(). This solution has the drawback that it is not scalable to many concurrent sessions, since for every session with a recursive event loop, a thread is locked until exec() returns. A thread that is locked by a recursive event loop cannot be used to process requests from another sessions. When all threads in the threadpool are locked in recursive event loops, the server will be unresponsive to requests from any other session. In practical terms, this means you must not use exec(), unless your application will never be used by more concurrent users than the amount of threads in your threadpool (like on some intranets or extranets). Using exec() is not supported from outside the regular event loop (i.e. when taking a lock on a session using WApplication::getUpdateLock() or by posting an event using WServer::post()). Use setModal(false) to create a non-modal dialog. A non-modal dialog does not block the underlying user interface: the user must not first deal with the dialog before interacting with the rest of the user interface.

Contents for the dialog is defined by adding it to the contents() widget.

Usage example, using the exec() method (not recommended):

Wt::WDialog dialog("Personalia");
new Wt::WText("Enter your name: ", dialog.contents());
Wt::WLineEdit edit(dialog.contents());
new Wt::WBreak(dialog.contents());
Wt::WPushButton ok("Ok", dialog.contents());
// these events will accept() the Dialog
ok.clicked().connect(&dialog, &Wt::WDialog::accept);
if (dialog.exec() == Wt::WDialog::Accepted)
setStatus("Welcome, " + edit.text());

Usage example, using the asynchronous method (recommended):

void MyClass::showDialog()
{
dialog_ = new WDialog("Personalia");
new Wt::WText("Enter your name: ", dialog_->contents());
edit_ = new Wt::WLineEdit(dialog_->contents());
new Wt::WBreak(dialog_->contents());
Wt::WPushButton *ok = new Wt::WPushButton("Ok", dialog_->contents());
// these events will accept() the Dialog
ok->clicked().connect(dialog_, &Wt::WDialog::accept);
dialog_->finished().connect(this, &MyClass::dialogDone);
dialog_->show();
}
void MyClass::dialogDone(DialogCode code)
{
if (code == Wt::WDialog::Accepted)
setStatus("Welcome, " + edit_->text());
delete dialog_;
}

This dialog looks like this (using the default css themes):

A simple custom dialog (default)
A simple custom dialog (polished)
Note
For the dialog (or rather, the silkscreen covering the user interface below) to render properly in IE, the "html body" margin is set to 0 (if it wasn't already).

Member Enumeration Documentation

The result of a modal dialog execution.

Enumerator
Rejected

Dialog closed with reject()

Accepted

Dialog closed with accept()

Constructor & Destructor Documentation

Wt::WDialog::WDialog ( WObject parent = 0)

Constructs a new dialog.

Unlike other widgets, the dialog does not require a parent container since it is a top-level widget. You may however still provide a parent object to let the dialog be deleted together with its parent.

Wt::WDialog::WDialog ( const WString windowTitle,
WObject parent = 0
)

Constructs a dialog with a given window title.

Unlike other widgets, the dialog does not require a parent container since it is a top-level widget. You may however still provide a parent object to let the dialog be deleted together with its parent.

Member Function Documentation

void Wt::WDialog::accept ( )
virtual

Closes the dialog, with result is Accepted.

See also
done(DialogCode r), reject()
WString Wt::WDialog::caption ( ) const

Returns the dialog caption (deprecated).

Deprecated:
Use windowTitle() instead.
WContainerWidget* Wt::WDialog::contents ( ) const

Returns the dialog contents container.

Content to the dialog window may be added to this container widget.

void Wt::WDialog::done ( DialogCode  r)
virtual

Stops the dialog.

Sets the dialog result, and emits the finished() signal.

If a recursive event loop was started using the exec() method, it is ended.

See also
finished(), result()
EventSignal & Wt::WDialog::enterPressed ( )

Event signal emitted when enter was pressed.

The event will be triggered if nothing in the WDialog has focus

See also
WInteractiveWidget::enterPressed
EventSignal & Wt::WDialog::escapePressed ( )

Event signal emitted when escape was pressed.

The event will be triggered if nothing in the WDialog has focus

See also
WInteractiveWidget::escapePressed
WDialog::DialogCode Wt::WDialog::exec ( const WAnimation animation = WAnimation())

Executes the dialog in a recursive event loop.

Executes the dialog synchronously. This blocks the current thread of execution until one of done(DialogCode), accept() or reject() is called.

Warning: using exec() does not scale to many concurrent sessions, since the thread is locked until exec returns, so the entire server will be unresponsive when the thread pool is exhausted.

See also
done(DialogCode r), accept(), reject()
Signal<DialogCode>& Wt::WDialog::finished ( )

Signal emitted when the dialog is closed.

See also
done(DialogCode r), accept(), reject()
WContainerWidget * Wt::WDialog::footer ( ) const

Returns the dialog footer container.

This is an optional section which is typically used for buttons.

bool Wt::WDialog::isModal ( ) const

Returns whether the dialog is modal.

See also
setModal()
bool Wt::WDialog::isTitleBarEnabled ( ) const

Returns whether the title bar is enabled.

See also
setTitleBarEnabled()
EventSignal< WKeyEvent > & Wt::WDialog::keyPressed ( )

Event signal emitted when a "character" was entered.

The event will be triggered if nothing in the WDialog has focus

See also
WInteractiveWidget::keyPressed
EventSignal< WKeyEvent > & Wt::WDialog::keyWentDown ( )

Event signal emitted when a keyboard key is pushed down.

The event will be triggered if nothing in the WDialog has focus

See also
WInteractiveWidget::keyWentDown
EventSignal< WKeyEvent > & Wt::WDialog::keyWentUp ( )

Event signal emitted when a keyboard key is released.

The event will be triggered if nothing in the WDialog has focus

See also
WInteractiveWidget::keyWentUp
bool Wt::WDialog::movable ( ) const

Returns whether the dialog can be moved.

See also
setMovable()
JSignal<int, int>& Wt::WDialog::moved ( )

Signal emitted when the dialog is being moved by the user.

The information passed are the new x and y position (relative to the wietdow).

void Wt::WDialog::positionAt ( const WWidget widget,
Orientation  orientation = Vertical
)
virtual

Positions a widget next to another widget.

Positions this absolutely positioned widget next to another widget. Both widgets must be visible (including all their ancestors). The current widget is shown automatically if needed.

When orientation = Wt::Vertical, the widget is displayed below the other widget (or above in case there is not enough room below). It is aligned so that the left edges align (or the right edges if there is not enough room to the right).

Conversely, when orientation = Wt::Horizontal, the widget is displayed to the right of the other widget (or to the left in case there is not enough room to the right). It is aligned so that the top edges align (or the bottom edges if there is not enough room below).

Note
This only works if JavaScript is available.

Reimplemented from Wt::WWidget.

void Wt::WDialog::reject ( )
virtual

Closes the dialog, with result is Rejected.

See also
done(DialogCode r), accept()
void Wt::WDialog::rejectWhenEscapePressed ( bool  enable = true)

Lets pressing the escape key reject the dialog.

Before Wt 3.1.5, pressing escape automatically rejected the dialog. Since 3.1.4 this behaviour is no longer the default since it may interfere with other functionality in the dialog. Use this method to enable this behaviour.

See also
reject()
void Wt::WDialog::render ( WFlags< RenderFlag flags)
protectedvirtual

Renders the widget.

This function renders the widget (or an update for the widget), after this has been scheduled using scheduleRender().

The default implementation will render the widget by serializing changes to JavaScript and HTML. You may want to reimplement this widget if you have been postponing some of the layout / rendering implementation until the latest moment possible. In that case you should make sure you call the base implementation however.

Reimplemented from Wt::WPopupWidget.

bool Wt::WDialog::resizable ( ) const

Returns whether the dialog has a resize handle.

See also
setResizable()
JSignal<int, int>& Wt::WDialog::resized ( )

Signal emitted when the dialog is being resized by the user.

The information passed are the new width and height.

See also
setResizable()
DialogCode Wt::WDialog::result ( ) const

Returns the result that was set for this dialog.

See also
done(DialogCode r)
void Wt::WDialog::setCaption ( const WString caption)

Sets the dialog caption (deprecated).

Deprecated:
Use setWindowTitle() instead.
void Wt::WDialog::setClosable ( bool  closable)

Adds a close button to the titlebar.

The close button is shown in the title bar. Clicking the close button will reject the dialog.

void Wt::WDialog::setHidden ( bool  hidden,
const WAnimation animation = WAnimation()
)
virtual

Hides or shows the widget.

Hides or show the widget (including all its descendant widgets). When setting hidden = false, this widget and all descendant widgets that are not hidden will be shown. A widget is only visible if it and all its ancestors in the widget tree are visible, which may be checked using isVisible().

Note
hide() and show() are considered to be stateless slots by default. If you override setHidden() and need to modify server state whenever it is called, you'll need to call WObject::isNotStateless().

Reimplemented from Wt::WPopupWidget.

Reimplemented in Wt::WMessageBox.

void Wt::WDialog::setMaximumSize ( const WLength width,
const WLength height
)
virtual

Sets a maximum size.

Specifies a maximum size for this widget, setting CSS max-width and max-height properties.

The default the maximum width and height are WLength::Auto, indicating no maximum size. A WLength::Percentage size should not be used, as this is (in virtually all cases) undefined behaviour.

When the widget is a container widget that contains a layout manager, then setting a maximum size will have the effect of letting the size of the container to reflect the preferred size of the contents (rather than constraining the size of the children based on the size of the container), up to the specified maximum size.

See also
resize(), setMinimumSize()

Reimplemented from Wt::WCompositeWidget.

void Wt::WDialog::setMinimumSize ( const WLength width,
const WLength height
)
virtual

Sets a minimum size.

Specifies a minimum size for this widget, setting CSS min-width and min-height properties.

The default minimum width and height is 0. The special value WLength::Auto indicates that the initial width is used as minimum size. A WLength::Percentage size should not be used, as this is (in virtually all cases) undefined behaviour.

When the widget is inserted in a layout manager, then the minimum size will be taken into account.

See also
resize(), minimumWidth(), minimumHeight()

Reimplemented from Wt::WCompositeWidget.

void Wt::WDialog::setModal ( bool  modal)

Sets whether the dialog is modal.

A modal dialog will block the underlying user interface. A modal dialog can be shown synchronously or asynchronously. A non-modal dialog can only be shown asynchronously.

By default a dialog is modal.

void Wt::WDialog::setMovable ( bool  movable)

Allows the dialog to be moved.

The dialog can be moved by grabbing the titlebar.

The default value is true.

void Wt::WDialog::setResizable ( bool  resizable)

Adds a resize handle to the dialog.

The resize handle is shown in the bottom right corner of the dialog, and allows the user to resize the dialog (but not smaller than the content allows).

This also sets the minimum width and height to WLength::Auto to use the initial width and height as minimum sizes. You may want to provide other values for minimum width and height to allow the dialog to be reduced in size.

The default value is false.

See also
setMinimumSize(), setMaximumSize()
void Wt::WDialog::setTitleBarEnabled ( bool  enabled)

Enables or disables the title bar.

The titlebar is enabled by default.

void Wt::WDialog::setWindowTitle ( const WString title)

Sets the dialog window title.

The window title is displayed in the title bar.

See also
setTitleBarEnabled()
WContainerWidget* Wt::WDialog::titleBar ( ) const

Returns the dialog title bar container.

The title bar contains a single text that contains the caption. You may customize the title bar by for example adding other content.

WString Wt::WDialog::windowTitle ( ) const

Returns the dialog window title.

See also
setWindowTitle()

Generated on Mon Sep 4 2017 for the C++ Web Toolkit (Wt) by doxygen 1.8.11
