A tree table that displays a file tree. More...

#include <FileTreeTable.h>

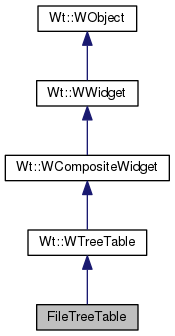

Inheritance diagram for FileTreeTable:

[legend]

Public Member Functions
	FileTreeTable (const boost::filesystem::path &path, Wt::WContainerWidget *parent=0)
	Construct a new FileTreeTable. More...

Public Member Functions inherited from Wt::WTreeTable
	WTreeTable (WContainerWidget *parent=0)

void	addColumn (const WString &header, const WLength &width)

int	columnCount () const

void	setTreeRoot (WTreeTableNode *root, const WString &header)

WTreeTableNode *	treeRoot ()

void	setTree (WTree *tree, const WString &header)

WTree *	tree () const

WLength	columnWidth (int column) const

WText *	header (int column) const

WWidget *	headerWidget () const

Public Member Functions inherited from Wt::WCompositeWidget
	WCompositeWidget (WContainerWidget *parent=0)

	WCompositeWidget (WWidget implementation, WContainerWidget parent)

virtual void	setObjectName (const std::string &name)

virtual std::string	objectName () const

virtual const std::string	id () const

virtual void	setPositionScheme (PositionScheme scheme)

virtual PositionScheme	positionScheme () const

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=All)

virtual WLength	offset (Side s) const

virtual void	resize (const WLength &width, const WLength &height)

virtual WLength	width () const

virtual WLength	height () const

virtual void	setMinimumSize (const WLength &width, const WLength &height)

virtual WLength	minimumWidth () const

virtual WLength	minimumHeight () const

virtual void	setMaximumSize (const WLength &width, const WLength &height)

virtual WLength	maximumWidth () const

virtual WLength	maximumHeight () const

virtual void	setLineHeight (const WLength &height)

virtual WLength	lineHeight () const

virtual void	setFloatSide (Side s)

virtual Side	floatSide () const

virtual void	setClearSides (WFlags< Side > sides)

virtual WFlags< Side >	clearSides () const

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=All)

virtual WLength	margin (Side side) const

virtual void	setHiddenKeepsGeometry (bool enabled)

virtual bool	hiddenKeepsGeometry () const

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation())

virtual bool	isHidden () const

virtual bool	isVisible () const

virtual void	setDisabled (bool disabled)

virtual bool	isDisabled () const

virtual bool	isEnabled () const

virtual void	setPopup (bool popup)

virtual bool	isPopup () const

virtual void	setInline (bool isInline)

virtual bool	isInline () const

virtual void	setDecorationStyle (const WCssDecorationStyle &style)

virtual WCssDecorationStyle &	decorationStyle ()

virtual void	setStyleClass (const WString &styleClass)

virtual WString	styleClass () const

virtual void	addStyleClass (const WString &styleClass, bool force=false)

virtual void	removeStyleClass (const WString &styleClass, bool force=false)

virtual bool	hasStyleClass (const WString &styleClass) const

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength::Auto)

virtual AlignmentFlag	verticalAlignment () const

virtual WLength	verticalAlignmentLength () const

virtual void	setToolTip (const WString &text, TextFormat textFormat=PlainText)

virtual WString	toolTip () const

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)

virtual void	refresh ()

virtual void	setAttributeValue (const std::string &name, const WString &value)

virtual WString	attributeValue (const std::string &name) const

virtual void	setJavaScriptMember (const std::string &name, const std::string &value)

virtual std::string	javaScriptMember (const std::string &name) const

virtual void	callJavaScriptMember (const std::string &name, const std::string &args)

virtual void	load ()

virtual bool	loaded () const

virtual void	setCanReceiveFocus (bool enabled)

virtual bool	canReceiveFocus () const

virtual void	setFocus (bool focus)

virtual bool	setFirstFocus ()

virtual bool	hasFocus () const

virtual void	setTabIndex (int index)

virtual int	tabIndex () const

virtual void	setId (const std::string &id)

virtual WWidget *	find (const std::string &name)

virtual WWidget *	findById (const std::string &name)

virtual void	setSelectable (bool selectable)

virtual void	doJavaScript (const std::string &js)

virtual void	propagateSetEnabled (bool enabled)

virtual bool	scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)

virtual void	setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)

virtual int	scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)

virtual void	setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)

virtual Signal< bool > &	scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)

virtual bool	isScrollVisible () const WT_CXX11ONLY(finaloverride)

virtual void	setThemeStyleEnabled (bool enabled)

virtual bool	isThemeStyleEnabled () const

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()

WWidget *	parent () const

virtual void	removeChild (WObject *child)

void	setWidth (const WLength &width)

void	setHeight (const WLength &height)

virtual void	positionAt (const WWidget *widget, Orientation orientation=Vertical)

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)

std::string	jsRef () const

void	setFocus ()

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())

virtual void	stopAcceptDrops (const std::string &mimeType)

virtual void	htmlText (std::ostream &out)

bool	isRendered () const

void	hide ()

void	animateHide (const WAnimation &animation)

void	show ()

void	animateShow (const WAnimation &animation)

void	enable ()

void	disable ()

bool	layoutSizeAware () const

Public Member Functions inherited from Wt::WObject
	WObject (WObject *parent=0)

virtual	~WObject ()

void	resetLearnedSlots ()

void	resetLearnedSlot (void(T::*method)())

WStatelessSlot *	implementStateless (void(T::*method)())

WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())

void	isNotStateless ()

WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)

void	addChild (WObject *child)

const std::vector< WObject * > &	children () const

WObject *	parent () const

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)

Protected Member Functions inherited from Wt::WTreeTable
virtual void	render (WFlags< RenderFlag > flags)

Protected Member Functions inherited from Wt::WCompositeWidget
virtual void	enableAjax ()

void	setImplementation (WWidget *widget)

WWidget *	implementation ()

virtual int	boxPadding (Orientation orientation) const

virtual int	boxBorder (Orientation orientation) const

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)

virtual void	layoutSizeChanged (int width, int height)

	WWidget (WContainerWidget *parent=0)

virtual void	dropEvent (WDropEvent dropEvent)

void	scheduleRender (WFlags< RepaintFlag > flags=0)

virtual WStatelessSlot *	getStateless (Method method)

Static Protected Member Functions inherited from Wt::WObject
static WObject *	sender ()

Detailed Description

A tree table that displays a file tree.

The table allows one to browse a path, and all its subdirectories, using a tree table. In addition to the file name, it shows file size and modification date.

The table use FileTreeTableNode objects to display the actual content of the table.

The tree table uses the LazyLoading strategy of WTreeNode to dynamically load contents for the tree.

This widget is part of the Wt File Explorer example.

Definition at line 33 of file FileTreeTable.h.

Constructor & Destructor Documentation

FileTreeTable::FileTreeTable	(	const boost::filesystem::path &	path,
		Wt::WContainerWidget *	parent = `0`
	)

Construct a new FileTreeTable.

Create a new FileTreeTable to browse the given path.

Definition at line 15 of file FileTreeTable.C.

   : WTreeTable(parent)
 {
   addColumn("Size", 80);
   addColumn("Modified", 110);

   header(1)->setStyleClass("fsize");
   header(2)->setStyleClass("date");

   setTreeRoot(new FileTreeTableNode(path), "File");

   treeRoot()->setImagePack("icons/");
   treeRoot()->expand();
 }

The documentation for this class was generated from the following files:

/home/roel/project/wt/public-git/wt/examples/filetreetable/FileTreeTable.h
/home/roel/project/wt/public-git/wt/examples/filetreetable/FileTreeTable.C
