A simple widget to visualise a set of example source files. More...

#include <ExampleSourceViewer.h>

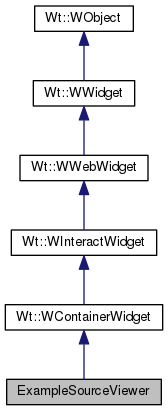

Inheritance diagram for ExampleSourceViewer:

[legend]

Public Member Functions
	ExampleSourceViewer (const std::string &deployPath, const std::string &examplesRoot, const std::string &examplesType)
	Constructor. More...

Public Member Functions inherited from Wt::WContainerWidget
	WContainerWidget (WContainerWidget *parent=0)

	~WContainerWidget ()

void	setLayout (WLayout *layout)

void	setLayout (WLayout *layout, WFlags< AlignmentFlag > alignment)

WLayout *	layout ()

virtual void	addWidget (WWidget *widget)

virtual void	insertBefore (WWidget widget, WWidget before)

virtual void	insertWidget (int index, WWidget *widget)

virtual void	removeWidget (WWidget *widget)

virtual void	clear ()

virtual int	indexOf (WWidget *widget) const

virtual WWidget *	widget (int index) const

virtual int	count () const

void	setContentAlignment (WFlags< AlignmentFlag > contentAlignment)

void	setPadding (const WLength &padding, WFlags< Side > sides=All)

WLength	padding (Side side) const

WFlags< AlignmentFlag >	contentAlignment () const

void	setOverflow (Overflow overflow, WFlags< Orientation > orientation=(Horizontal\|Vertical))

void	setList (bool list, bool ordered=false)

bool	isList () const

bool	isUnorderedList () const

bool	isOrderedList () const

EventSignal< WScrollEvent > &	scrolled ()

int	scrollTop () const

int	scrollLeft () const

Public Member Functions inherited from Wt::WInteractWidget
	WInteractWidget (WContainerWidget *parent=0)

EventSignal< WKeyEvent > &	keyWentDown ()

EventSignal< WKeyEvent > &	keyPressed ()

EventSignal< WKeyEvent > &	keyWentUp ()

EventSignal &	enterPressed ()

EventSignal &	escapePressed ()

EventSignal< WMouseEvent > &	clicked ()

EventSignal< WMouseEvent > &	doubleClicked ()

EventSignal< WMouseEvent > &	mouseWentDown ()

EventSignal< WMouseEvent > &	mouseWentUp ()

EventSignal< WMouseEvent > &	mouseWentOut ()

EventSignal< WMouseEvent > &	mouseWentOver ()

EventSignal< WMouseEvent > &	mouseMoved ()

EventSignal< WMouseEvent > &	mouseDragged ()

EventSignal< WMouseEvent > &	mouseWheel ()

EventSignal< WTouchEvent > &	touchStarted ()

EventSignal< WTouchEvent > &	touchEnded ()

EventSignal< WTouchEvent > &	touchMoved ()

EventSignal< WGestureEvent > &	gestureStarted ()

EventSignal< WGestureEvent > &	gestureChanged ()

EventSignal< WGestureEvent > &	gestureEnded ()

void	setDraggable (const std::string &mimeType, WWidget dragWidget=0, bool isDragWidgetOnly=false, WObject sourceWidget=0)

void	unsetDraggable ()

void	setMouseOverDelay (int delay)

int	mouseOverDelay () const

virtual void	setPopup (bool popup)

virtual void	load ()

virtual bool	isEnabled () const

Public Member Functions inherited from Wt::WWebWidget
	WWebWidget (WContainerWidget *parent=0)

virtual void	setPositionScheme (PositionScheme scheme)

virtual PositionScheme	positionScheme () const

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=All)

virtual WLength	offset (Side s) const

virtual void	resize (const WLength &width, const WLength &height)

virtual WLength	width () const

virtual WLength	height () const

virtual void	setMinimumSize (const WLength &width, const WLength &height)

virtual WLength	minimumWidth () const

virtual WLength	minimumHeight () const

virtual void	setMaximumSize (const WLength &width, const WLength &height)

virtual WLength	maximumWidth () const

virtual WLength	maximumHeight () const

virtual void	setLineHeight (const WLength &height)

virtual WLength	lineHeight () const

virtual void	setFloatSide (Side s)

virtual Side	floatSide () const

virtual void	setClearSides (WFlags< Side > sides)

virtual WFlags< Side >	clearSides () const

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=All)

virtual WLength	margin (Side side) const

virtual void	setHiddenKeepsGeometry (bool enabled)

virtual bool	hiddenKeepsGeometry () const

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation())

virtual bool	isHidden () const

virtual bool	isVisible () const

virtual void	setDisabled (bool disabled)

virtual bool	isDisabled () const

virtual bool	isPopup () const

virtual void	setInline (bool isInline)

virtual bool	isInline () const

virtual void	setDecorationStyle (const WCssDecorationStyle &style)

virtual WCssDecorationStyle &	decorationStyle ()

virtual void	setStyleClass (const WString &styleClass)

virtual WString	styleClass () const

virtual void	addStyleClass (const WString &styleClass, bool force=false)

virtual void	removeStyleClass (const WString &styleClass, bool force=false)

virtual bool	hasStyleClass (const WString &styleClass) const

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())

virtual AlignmentFlag	verticalAlignment () const

virtual WLength	verticalAlignmentLength () const

virtual void	setToolTip (const WString &text, TextFormat textFormat=PlainText)

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)

virtual WString	toolTip () const

virtual void	refresh ()

virtual void	setAttributeValue (const std::string &name, const WString &value)

virtual WString	attributeValue (const std::string &name) const

virtual void	setJavaScriptMember (const std::string &name, const std::string &value)

virtual std::string	javaScriptMember (const std::string &name) const

virtual void	callJavaScriptMember (const std::string &name, const std::string &args)

virtual bool	loaded () const

virtual void	setId (const std::string &id)

virtual WWidget *	find (const std::string &name)

virtual WWidget *	findById (const std::string &id)

virtual void	setSelectable (bool selectable)

virtual void	doJavaScript (const std::string &javascript)

virtual const std::string	id () const

void	setLoadLaterWhenInvisible (bool)

std::string	htmlTagName () const

void	setHtmlTagName (const std::string &tag)

const std::vector< WWidget * > &	children () const

Signal &	childrenChanged ()

virtual void	setCanReceiveFocus (bool enabled)

virtual bool	canReceiveFocus () const

virtual bool	setFirstFocus ()

virtual void	setFocus (bool focus)

virtual bool	hasFocus () const

virtual void	setTabIndex (int index)

virtual int	tabIndex () const

EventSignal &	blurred ()

EventSignal &	focussed ()

virtual bool	scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)

virtual void	setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)

virtual int	scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)

virtual void	setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)

virtual Signal< bool > &	scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)

virtual bool	isScrollVisible () const WT_CXX11ONLY(finaloverride)

virtual void	setThemeStyleEnabled (bool enabled)

virtual bool	isThemeStyleEnabled () const

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()

WWidget *	parent () const

virtual void	removeChild (WObject *child)

void	setWidth (const WLength &width)

void	setHeight (const WLength &height)

virtual void	positionAt (const WWidget *widget, Orientation orientation=Vertical)

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)

std::string	jsRef () const

void	setFocus ()

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())

virtual void	stopAcceptDrops (const std::string &mimeType)

virtual void	setObjectName (const std::string &name)

virtual void	htmlText (std::ostream &out)

bool	isRendered () const

void	hide ()

void	animateHide (const WAnimation &animation)

void	show ()

void	animateShow (const WAnimation &animation)

void	enable ()

void	disable ()

bool	layoutSizeAware () const

Public Member Functions inherited from Wt::WObject
	WObject (WObject *parent=0)

virtual	~WObject ()

virtual std::string	objectName () const

void	resetLearnedSlots ()

void	resetLearnedSlot (void(T::*method)())

WStatelessSlot *	implementStateless (void(T::*method)())

WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())

void	isNotStateless ()

WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)

void	addChild (WObject *child)

const std::vector< WObject * > &	children () const

WObject *	parent () const

Private Member Functions
void	cppTraverseDir (Wt::WStandardItem *parent, const boost::filesystem::path &path)

void	javaTraverseDir (Wt::WStandardItem *parent, const boost::filesystem::path &path)

void	javaTraversePackages (Wt::WStandardItem *parent, const boost::filesystem::path &srcPath, const std::string packageName)

void	showFile ()
	Displayed the currently selected file. More...

void	handlePathChange ()

void	setExample (const std::string &exampleDir, const std::string &example)

Private Attributes
Wt::WTreeView *	exampleView_

SourceView *	sourceView_

std::string	deployPath_

std::string	examplesRoot_

std::string	examplesType_

Wt::WStandardItemModel *	model_

Additional Inherited Members
Public Types inherited from Wt::WContainerWidget
enum	Overflow

Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()

Static Public Member Functions inherited from Wt::WWebWidget
static WString	escapeText (const WString &text, bool newlinesToo=false)

static std::string &	escapeText (std::string &text, bool newlinestoo=false)

static bool	removeScript (WString &text)

static std::string	jsStringLiteral (const std::string &v, char delimiter= '\'')

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)

Public Attributes inherited from Wt::WContainerWidget
	OverflowVisible

	OverflowAuto

	OverflowHidden

	OverflowScroll

Protected Member Functions inherited from Wt::WInteractWidget
virtual void	propagateSetEnabled (bool enabled)

Protected Member Functions inherited from Wt::WWebWidget
virtual void	enableAjax ()

virtual WStatelessSlot *	getStateless (Method method)

virtual void	render (WFlags< RenderFlag > flags)

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)

virtual void	layoutSizeChanged (int width, int height)

	WWidget (WContainerWidget *parent=0)

virtual void	dropEvent (WDropEvent dropEvent)

virtual int	boxPadding (Orientation orientation) const

virtual int	boxBorder (Orientation orientation) const

void	scheduleRender (WFlags< RepaintFlag > flags=0)

Static Protected Member Functions inherited from Wt::WObject
static WObject *	sender ()

Detailed Description

A simple widget to visualise a set of example source files.

Definition at line 21 of file ExampleSourceViewer.h.

Constructor & Destructor Documentation

ExampleSourceViewer::ExampleSourceViewer	(	const std::string &	deployPath,
		const std::string &	examplesRoot,
		const std::string &	examplesType
	)

Constructor.

Definition at line 71 of file ExampleSourceViewer.C.

   : deployPath_(deployPath),
     examplesRoot_(examplesRoot),
     examplesType_(examplesType)
 {
   wApp->internalPathChanged().connect
     (this, &ExampleSourceViewer::handlePathChange);

   handlePathChange();
 }

Member Function Documentation

void ExampleSourceViewer::cppTraverseDir	(	Wt::WStandardItem *	parent,
		const boost::filesystem::path &	path
	)

private

Definition at line 194 of file ExampleSourceViewer.C.

 {
   static const char *supportedFiles[] = {
     ".C", ".cpp", ".h", ".css", ".xml", ".png", ".gif", ".csv", ".ico", 0
   };

   FileItem* dir = new FileItem("/icons/yellow-folder-open.png", filename(path),
                                "");
   parent->appendRow(dir);
   parent = dir;
   try {
     std::set<fs::path> paths;

     fs::directory_iterator end_itr;
     for (fs::directory_iterator i(path); i != end_itr; ++i)
       paths.insert(*i);

     std::vector<FileItem*> classes, files;
     std::vector<fs::path> dirs;

     while (!paths.empty()) {
       fs::path p = *paths.begin();
       paths.erase(p);

       // skip symbolic links and other files
       if (fs::is_symlink(p))
         continue;

       // skip files with an extension we do not want to handle
       if (fs::is_regular(p)) {
         std::string ext = fs::extension(p);
         bool supported = false;
         for (const char **s = supportedFiles; *s != 0; ++s)
           if (*s == ext) {
             supported = true;
             break;
           }

         if (!supported)
           continue;
       }

       // see if we have one file of a class (.C, .h)
       fs::path companion = getCompanion(p);
       if (!companion.empty()) {
         std::set<fs::path>::iterator it_companion = paths.find(companion);

           if (it_companion != paths.end()) {
             std::string className = stem(p);
             escapeText(className);
             std::string label = "<i>class</i> " + className;

             FileItem *classItem =
               new FileItem("/icons/cppclass.png", label, std::string());
             classItem->setFlags(classItem->flags() | ItemIsXHTMLText);

             FileItem *header = new FileItem("/icons/document.png", filename(p),
                                             p.string());
             FileItem *cpp = new FileItem("/icons/document.png",
                                          filename(*it_companion),
                                          (*it_companion).string());
             classItem->appendRow(header);
             classItem->appendRow(cpp);

             classes.push_back(classItem);
             paths.erase(it_companion);
           } else {
             FileItem *file = new FileItem("/icons/document.png", filename(p),
                                           p.string());
             files.push_back(file);
           }
       } else if (fs::is_directory(p)) {
         dirs.push_back(p);
       } else {
         FileItem *file = new FileItem("/icons/document.png", filename(p),
                                       p.string());
         files.push_back(file);
       }
     }

     std::sort(dirs.begin(), dirs.end(), comparePaths);

     for (unsigned int i = 0; i < classes.size(); i++)
       parent->appendRow(classes[i]);

     for (unsigned int i = 0; i < files.size(); i++)
       parent->appendRow(files[i]);

     for (unsigned int i = 0; i < dirs.size(); i++)
       cppTraverseDir(parent, dirs[i]);
   } catch (fs::filesystem_error& e) {
     std::cerr << e.what() << std::endl;
   }
 }

void ExampleSourceViewer::handlePathChange ( )

private

Definition at line 84 of file ExampleSourceViewer.C.

 {
   WApplication *app = wApp;

   if (app->internalPathMatches(deployPath_)) {
     std::string example = app->internalPathNextPart(deployPath_);

     if (example.find("..") != std::string::npos
         || example.find('/') != std::string::npos
         || example.find('\\') != std::string::npos) {
       app->setInternalPathValid(false);
       setExample("INVALID_DIR", "INVALID");
     } else
       setExample(examplesRoot_ + example, example);
   }
 }

void ExampleSourceViewer::javaTraverseDir	(	Wt::WStandardItem *	parent,
		const boost::filesystem::path &	path
	)

private

Definition at line 324 of file ExampleSourceViewer.C.

 {
   FileItem* dir = new FileItem("/icons/yellow-folder-open.png", filename(path),
                                "");
   parent->appendRow(dir);
   parent = dir;

   std::vector<fs::path> files, dirs;

   fs::directory_iterator end_itr;
   for (fs::directory_iterator i(path); i != end_itr; ++i) {
     fs::path p = *i;
     if (fs::is_directory(p)) {
       if (filename(p) == "src") {
         FileItem* dir = new FileItem("/icons/package-folder-open.png",
                                      filename(p), "");
         parent->appendRow(dir);
         javaTraversePackages(dir, p, "");
       } else
         dirs.push_back(p);
     } else {
       files.push_back(p);
     }
   }

   std::sort(dirs.begin(), dirs.end(), comparePaths);
   std::sort(files.begin(), files.end(), comparePaths);

   for (unsigned int i = 0; i < dirs.size(); i++)
     javaTraverseDir(parent, dirs[i]);

   for (unsigned int i = 0; i < files.size(); i++) {
     FileItem *file = new FileItem("/icons/document.png", filename(files[i]),
                                   files[i].string());
     parent->appendRow(file);
   }
 }

void ExampleSourceViewer::javaTraversePackages	(	Wt::WStandardItem *	parent,
		const boost::filesystem::path &	srcPath,
		const std::string	packageName
	)

private

Definition at line 290 of file ExampleSourceViewer.C.

 {
   fs::directory_iterator end_itr;

   FileItem *packageItem = 0;
   for (fs::directory_iterator i(srcPath); i != end_itr; ++i) {
     fs::path p = *i;
     if (fs::is_regular(p)) {
       if (!packageItem) {
         packageItem = new FileItem("/icons/package.png", packageName, "");
         parent->appendRow(packageItem);
       }

       FileItem *file = new FileItem("/icons/javaclass.png", filename(p),
                                     p.string());
       packageItem->appendRow(file);
     }
   }

   for (fs::directory_iterator i(srcPath); i != end_itr; ++i) {
     fs::path p = *i;
     if (fs::is_directory(p)) {
       std::string pn = packageName;
       if (!pn.empty())
         pn += ".";
       pn += filename(p);

       javaTraversePackages(parent, p, pn);
     }
   }
 }

void ExampleSourceViewer::setExample	(	const std::string &	exampleDir,
		const std::string &	example
	)

private

Definition at line 101 of file ExampleSourceViewer.C.

 {
   clear();

   bool exists = false;
   try {
     exists = fs::exists(exampleDir);
   } catch (std::exception&) {
   }

   if (!exists) {
     WApplication::instance()->setInternalPathValid(false);
     addWidget(new WText("No such example: " + exampleDir));
     return;
   }

   model_ = new WStandardItemModel(0, 1, this);
   if (examplesType_ == "CPP") {
     cppTraverseDir(model_->invisibleRootItem(), exampleDir);
   } else if (examplesType_ == "JAVA") {
     javaTraverseDir(model_->invisibleRootItem(), exampleDir);
   }

   WApplication::instance()->setTitle(tr("srcview.title." + example));
   WText *title =
     new WText(tr("srcview.title." + examplesType_ + "." + example));
   title->setInternalPathEncoding(true);

   exampleView_ = new WTreeView();
   exampleView_->setHeaderHeight(0);
   exampleView_->resize(300, WLength::Auto);
   exampleView_->setSortingEnabled(false);
   exampleView_->setModel(model_);
   exampleView_->expandToDepth(1);
   exampleView_->setSelectionMode(SingleSelection);
   exampleView_->setAlternatingRowColors(false);
   exampleView_->selectionChanged().connect
     (this, &ExampleSourceViewer::showFile);

   sourceView_ = new SourceView(FileItem::FileNameRole,
                                FileItem::ContentsRole,
                                FileItem::FilePathRole);
   sourceView_->setStyleClass("source-view");

   /*
    * Expand path to first file, to show something in the source viewer
    */
   WStandardItem *w = model_->item(0);
   do {
     exampleView_->setExpanded(w->index(), true);
     if (w->rowCount() > 0)
       w = w->child(0);
     else {
       exampleView_->select(w->index(), Select);
       w = 0;
     }
   } while (w);

   WVBoxLayout *topLayout = new WVBoxLayout();
   topLayout->addWidget(title);

   WHBoxLayout *gitLayout = new WHBoxLayout();
   gitLayout->addWidget(exampleView_, 0);
   gitLayout->addWidget(sourceView_, 1);
   topLayout->addLayout(gitLayout, 1);
   gitLayout->setResizable(0);

   /*
    * FIXME, in plain HTML mode, we should set a minimum size to the source
    * view, and remove this in enableAjax() ?
    */
   // sourceView_->setHeight("100%");

   setLayout(topLayout);
   setStyleClass("maindiv");
 }

void ExampleSourceViewer::showFile ( )

private

Displayed the currently selected file.

Definition at line 365 of file ExampleSourceViewer.C.

                                    {
   if (exampleView_->selectedIndexes().empty())
     return;

   WModelIndex selected = *exampleView_->selectedIndexes().begin();

   // expand a folder when clicked
   if (exampleView_->model()->rowCount(selected) > 0
       && !exampleView_->isExpanded(selected))
     exampleView_->setExpanded(selected, true);

   // (for a file,) load data in source viewer
   sourceView_->setIndex(selected);
 }

Member Data Documentation

std::string ExampleSourceViewer::deployPath_

private

Definition at line 34 of file ExampleSourceViewer.h.

std::string ExampleSourceViewer::examplesRoot_

private

Definition at line 35 of file ExampleSourceViewer.h.

std::string ExampleSourceViewer::examplesType_

private

Definition at line 36 of file ExampleSourceViewer.h.

Wt::WTreeView* ExampleSourceViewer::exampleView_

private

Definition at line 31 of file ExampleSourceViewer.h.

Wt::WStandardItemModel* ExampleSourceViewer::model_

private

Definition at line 38 of file ExampleSourceViewer.h.

SourceView* ExampleSourceViewer::sourceView_

private

Definition at line 32 of file ExampleSourceViewer.h.

The documentation for this class was generated from the following files:

/home/roel/project/wt/public-git/wt/examples/wt-homepage/ExampleSourceViewer.h
/home/roel/project/wt/public-git/wt/examples/wt-homepage/ExampleSourceViewer.C

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
