Wt::Chart::WAbstractGridData Class Referenceabstract

Class representing grid-based data for on a 3D chart. More...

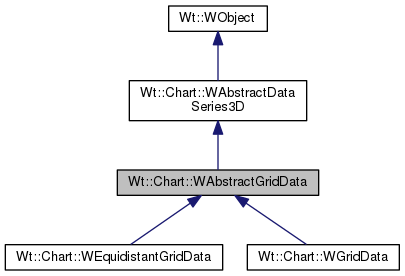

Inheritance diagram for Wt::Chart::WAbstractGridData:
Inheritance graph
[legend]

Public Member Functions

 WAbstractGridData (WAbstractItemModel *model)
 Constructor.

virtual double minimum (Axis axis) const =0
 Returns the computed minimum value of this dataseries along the given axis. More...

virtual double maximum (Axis axis) const =0
 Returns the computed maximum value of this dataseries along the given axis. More...

void setType (Series3DType type)
 Sets the type of representation that will be used for the data. More...

virtual Series3DType type () const
 Returns the type of representation that will be used for the data. More...

void setSurfaceMeshEnabled (bool enabled=true)
 Enables or disables a mesh for when a surface is drawn. More...

bool isSurfaceMeshEnabled ()
 Returns whether the surface-mesh is enabled for this dataseries. More...

void setBarWidth (double xWidth, double yWidth)
 Sets the bar-width. More...

double barWidthX ()
 Returns the bar-width in the X-axis direction. More...

double barWidthY ()
 Returns the bar-width in the Y-axis direction. More...

void setPen (const WPen &pen)
 Sets the WPen that is used for drawing the mesh. More...

WPen pen () const
 Returns the pen that is used for drawing the mesh. More...

std::vector< WSurfaceSelectionpickSurface (int x, int y) const
 Find all points on the surface that are projected to the given pixel. More...

WBarSelection pickBar (int x, int y) const
 Return the bar that is closest to the look point at the given pixel. More...

void setIsoLevels (const std::vector< double > &isoLevels)
 Set isoline levels. More...

const std::vector< double > & isoLevels () const
 Get all of the isoline levels. More...

void setIsoColorMap (WAbstractColorMap *colormap)
 Set the color map for the isolines. More...

const WAbstractColorMapisoColorMap () const
 Get the color map for the isolines. More...

void setClippingMin (Axis axis, float v)
 Set the value below which the data series will be clipped on the given axis. More...

float clippingMin (Axis axis) const
 Gets the value below which the data series will be clipped on the given axis. More...

JSlotchangeClippingMin (Axis axis)
 JSlot to change the value below which the data series will be clipped on the given axis. More...

void setClippingMax (Axis axis, float v)
 Set the value above which the data series will be clipped on the given axis. More...

float clippingMax (Axis axis) const
 Gets the value above which the data series will be clipped on the given axis. More...

JSlotchangeClippingMax (Axis axis)
 JSlot to change the value above which the data series will be clipped on the given axis. More...

void setClippingLinesEnabled (bool clippingLinesEnabled)
 Sets whether clipping lines should be drawn where a surface is clipped. More...

bool clippingLinesEnabled () const
 Returns whether clipping lines are enabled. More...

void setClippingLinesColor (WColor color)
 Sets the color of the clipping lines. More...

WColor clippingLinesColor () const
 Gets the color of the clipping lines. More...

virtual void initializeGL ()
 Initialize GL resources. More...

virtual void paintGL () const
 Update the client-side painting function. More...

virtual void updateGL ()
 Update GL resources. More...

virtual void resizeGL ()
 Act on resize events. More...

virtual void deleteAllGLResources ()
 Delete GL resources. More...

- Public Member Functions inherited from Wt::Chart::WAbstractDataSeries3D
 WAbstractDataSeries3D (WAbstractItemModel *model)
 Constructor. More...

void setTitle (const WString &name)
 Sets the title of this dataseries. More...

const WStringtitle () const
 Returns the title of this dataseries. More...

void setModel (WAbstractItemModel *model)
 Sets a model from which the dataseries gets its data. More...

WAbstractItemModelmodel () const
 Returns a pointer to the model used by this dataseries. More...

const WCartesian3DChartchart () const
 Returns a const pointer to the WCartesian3DChart on which the dataseries is drawn.

void setPointSize (double size)
 Sets the pointsize for drawing this dataseries. More...

double pointSize () const
 Returns the pointsize for drawing this dataseries. More...

void setPointSprite (const std::string &image)
 Set the point sprite used for drawing this dataseries. More...

const std::string & pointSprite () const
 Returns the point sprite used for drawing this dataseries. More...

void setColorMap (WAbstractColorMap *colormap)
 Sets the colormap for this dataseries. More...

const WAbstractColorMapcolorMap () const
 Returns the colormap used by this dataseries. More...

void setColorMapVisible (bool enabled=true)
 Sets whether the colormap that is used should be shown alongside the chart in the form of a legend. More...

bool colorMapVisible () const
 Returns whether the colormap is shown alongside the chart in the form of a legend. More...

void setColorMapSide (Side side)
 Sets whether the colormap is shown on the left or right. More...

Side colorMapSide () const
 Returns on which side the colormap is shown. More...

void setLegendEnabled (bool enabled=true)
 Sets whether this dataseries is included in the chart-legend. More...

bool isLegendEnabled () const
 Returns whether this dataseries is included in the chart-legend. More...

void setHidden (bool enabled=true)
 Sets if this dataseries is hidden. More...

bool isHidden () const
 Returns if this dataseries is hidden. More...

- Public Member Functions inherited from Wt::WObject
 WObject (WObject *parent=0)
 Create a WObject with a given parent object. More...

virtual ~WObject ()
 Destructor. More...

virtual const std::string id () const
 Returns the (unique) identifier for this object. More...

virtual void setObjectName (const std::string &name)
 Sets an object name. More...

virtual std::string objectName () const
 Returns the object name. More...

void resetLearnedSlots ()
 Resets learned stateless slot implementations. More...

template<class T >
void resetLearnedSlot (void(T::*method)())
 Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)())
 Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())
 Declares a slot to be stateless and learn client-side behaviour in advance. More...

void isNotStateless ()
 Marks the current function as not stateless. More...

template<class T >
WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)
 Provides a JavaScript implementation for a method. More...

void addChild (WObject *child)
 Adds a child object. More...

virtual void removeChild (WObject *child)
 Removes a child object. More...

const std::vector< WObject * > & children () const
 Returns the children.

WObjectparent () const
 Returns the parent object.


Additional Inherited Members

- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()
 Typedef for a WObject method without arguments.

- Protected Member Functions inherited from Wt::WObject
virtual WStatelessSlot * getStateless (Method method)
 On-demand stateless slot implementation. More...

- Static Protected Member Functions inherited from Wt::WObject
static WObjectsender ()
 Returns the sender of the current slot call. More...


Detailed Description

Class representing grid-based data for on a 3D chart.

General information can be found at WAbstractDataSeries3D. Information on how the model is structured is provided in the subclasses. GridData can be represented in three ways. This is indicated by Series3DType and can be either PointSeries3D, SurfaceSeries3D or BarSeries3D. Note that points and surfaces can only be added to charts of type ScatterPlot, while bars can only be added to charts of type CategoryChart.

When the data is shown as a surface, a mesh can be added to the surface. This draws lines over the surface at the positions of the x- and y-values. For bar-series data, it is possible to adjust the width of the bars in both directions.

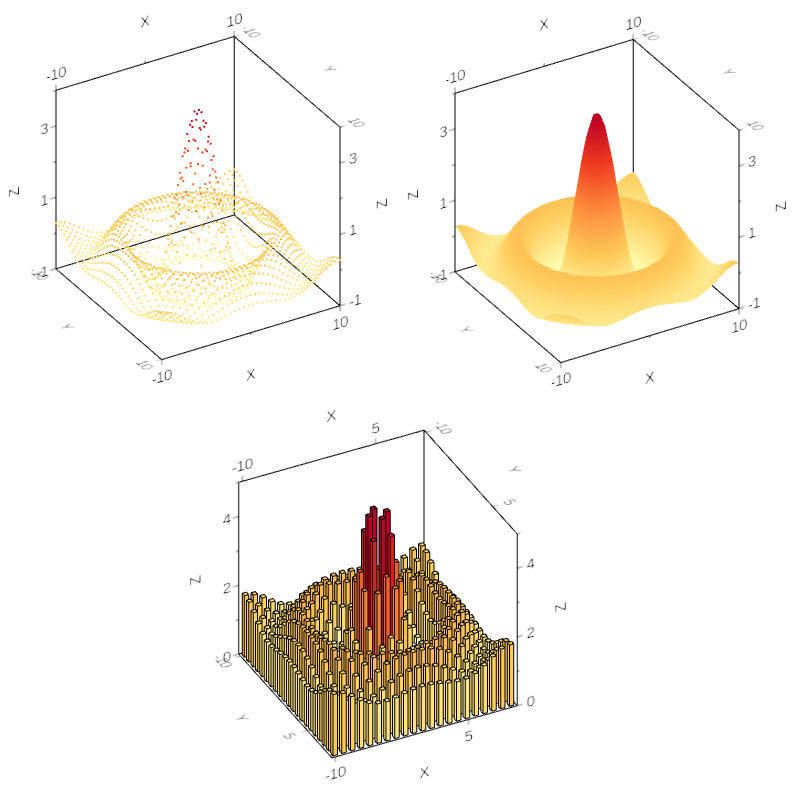

The three types of data-representation are illustrated below.

The three representation types of grid-based data

Member Function Documentation

double Wt::Chart::WAbstractGridData::barWidthX ( )

Returns the bar-width in the X-axis direction.

See also
setBarWidth()
double Wt::Chart::WAbstractGridData::barWidthY ( )

Returns the bar-width in the Y-axis direction.

See also
setBarWidth()
JSlot & Wt::Chart::WAbstractGridData::changeClippingMax ( Axis  axis)

JSlot to change the value above which the data series will be clipped on the given axis.

The JSlot takes one extra argument: the value to clip below.

The jsRef() of this JSlot is only valid when this WAbstractGridData has been added to a WCartesian3DChart. If this WAbstractGridData moves to another WCartesian3DChart, the jsRef() of the JSlot changes.

See also
setClippingMax()
JSlot & Wt::Chart::WAbstractGridData::changeClippingMin ( Axis  axis)

JSlot to change the value below which the data series will be clipped on the given axis.

The JSlot takes one extra argument: the value to clip below.

The jsRef() of this JSlot is only valid when this WAbstractGridData has been added to a WCartesian3DChart. If this WAbstractGridData moves to another WCartesian3DChart, the jsRef() of the JSlot changes.

See also
setClippingMin()
WColor Wt::Chart::WAbstractGridData::clippingLinesColor ( ) const

Gets the color of the clipping lines.

See also
setClippingLinesColor(), setClippingLinesEnabled()
bool Wt::Chart::WAbstractGridData::clippingLinesEnabled ( ) const

Returns whether clipping lines are enabled.

See also
setClippingLinesEnabled()
float Wt::Chart::WAbstractGridData::clippingMax ( Axis  axis) const

Gets the value above which the data series will be clipped on the given axis.

See also
setClippingMax()
float Wt::Chart::WAbstractGridData::clippingMin ( Axis  axis) const

Gets the value below which the data series will be clipped on the given axis.

See also
setClippingMin()
void Wt::Chart::WAbstractGridData::deleteAllGLResources ( )
virtual

Delete GL resources.

This function is called by updateGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

void Wt::Chart::WAbstractGridData::initializeGL ( )
virtual

Initialize GL resources.

This function is called by initializeGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

const WAbstractColorMap* Wt::Chart::WAbstractGridData::isoColorMap ( ) const

Get the color map for the isolines.

See also
setIsoColorMap()
const std::vector< double > & Wt::Chart::WAbstractGridData::isoLevels ( ) const

Get all of the isoline levels.

See also
addIsoLevel()
bool Wt::Chart::WAbstractGridData::isSurfaceMeshEnabled ( )

Returns whether the surface-mesh is enabled for this dataseries.

See also
setSurfaceMeshEnabled()
virtual double Wt::Chart::WAbstractGridData::maximum ( Axis  axis) const
pure virtual

Returns the computed maximum value of this dataseries along the given axis.

See also
minimum()

Implements Wt::Chart::WAbstractDataSeries3D.

Implemented in Wt::Chart::WGridData, and Wt::Chart::WEquidistantGridData.

virtual double Wt::Chart::WAbstractGridData::minimum ( Axis  axis) const
pure virtual

Returns the computed minimum value of this dataseries along the given axis.

See also
maximum()

Implements Wt::Chart::WAbstractDataSeries3D.

Implemented in Wt::Chart::WGridData, and Wt::Chart::WEquidistantGridData.

void Wt::Chart::WAbstractGridData::paintGL ( ) const
virtual

Update the client-side painting function.

This function is called by paintGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

WPen Wt::Chart::WAbstractGridData::pen ( ) const

Returns the pen that is used for drawing the mesh.

See also
setPen()
WBarSelection Wt::Chart::WAbstractGridData::pickBar ( int  x,
int  y
) const

Return the bar that is closest to the look point at the given pixel.

A ray is cast from the given pixel's x,y position (from the top left of the chart, in screen coordinates), and the closest bar on this WAbstractGridData is returned, along with its distance from the look point.

Note that if this WAbstractGridData is hidden, this method still returns the closest bar as if it was visible. Also, if multiple bars are on the same bar chart, the bar that is returned may be behind another data series. Use the distance field of the returned WBarSelection to determine which data series is in front from the given angle.

If there is no bar at the given pixel, then a selection with an invalid WModelIndex is returned. The distance is then set to positive infinity.

std::vector< WSurfaceSelection > Wt::Chart::WAbstractGridData::pickSurface ( int  x,
int  y
) const

Find all points on the surface that are projected to the given pixel.

A ray is cast from the given pixel's x,y position (from the top left of the chart, in screen coordinates) and every intersection with the surface is returned, along with its distance from the look point. Note that the coordinates of the intersection points are interpolated between the data points that make up the surface.

void Wt::Chart::WAbstractGridData::resizeGL ( )
virtual

Act on resize events.

This function is called by resizeGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

void Wt::Chart::WAbstractGridData::setBarWidth ( double  xWidth,
double  yWidth
)

Sets the bar-width.

This option only takes effect when the type of this WGridData is BarSeries3D. The values provided should be between 0 and 1, where 1 lets the bars each take up 1/(nb of x/y-values) of the axis.

The default bar-width is 0.5 in both directions.

void Wt::Chart::WAbstractGridData::setClippingLinesColor ( WColor  color)

Sets the color of the clipping lines.

See also
setClippingLinesEnabled()
void Wt::Chart::WAbstractGridData::setClippingLinesEnabled ( bool  clippingLinesEnabled)

Sets whether clipping lines should be drawn where a surface is clipped.

Clipping lines are disabled by default. Note that rendering will be significantly slower when enabled.

void Wt::Chart::WAbstractGridData::setClippingMax ( Axis  axis,
float  v
)

Set the value above which the data series will be clipped on the given axis.

This only affects data series whose type is SurfaceSeries3D.

void Wt::Chart::WAbstractGridData::setClippingMin ( Axis  axis,
float  v
)

Set the value below which the data series will be clipped on the given axis.

This only affects data series whose type is SurfaceSeries3D.

void Wt::Chart::WAbstractGridData::setIsoColorMap ( WAbstractColorMap colormap)

Set the color map for the isolines.

When no color map is defined for the isolines, i.e. isoColorMap() is set to NULL, the color map of this WAbstractGridData will be used.

The isolines are only drawn if the type is SurfaceSeries3D.

If the colormap has no parent yet, then ownership is transferred to this WAbstractGridData, and thus the validator will be deleted together with the WAbstractGridData.

See also
addIsoLevel(), setColorMap()
void Wt::Chart::WAbstractGridData::setIsoLevels ( const std::vector< double > &  isoLevels)

Set isoline levels.

Isolines are drawn on the top or ground plane of the chart. Only applies if the type is SurfaceSeries3D.

The isoline levels are set in the coordinate system of the item model.

void Wt::Chart::WAbstractGridData::setPen ( const WPen pen)

Sets the WPen that is used for drawing the mesh.

Used when drawing the mesh on a surface or the lines around bars. The default is a default constructed WPen (black and one pixel wide).

Note: only the width and color of this WPen are used.

See also
setSurfaceMeshEnabled()
void Wt::Chart::WAbstractGridData::setSurfaceMeshEnabled ( bool  enabled = true)

Enables or disables a mesh for when a surface is drawn.

The default value is false. This option only takes effect when the type of this WGridData is SurfaceSeries3D. The mesh is drawn at the position of the x-axis and y-axis values.

void Wt::Chart::WAbstractGridData::setType ( Series3DType  type)

Sets the type of representation that will be used for the data.

All representations in Series3DType are possible for the data. Note that PointSeries3D and SurfaceSeries3D can only be used on a chart that is configured as a ScatterPlot and BarSeries3D can only be used on a chart that is configured to be a CategoryChart.

The default value is PointSeries3D.

virtual Series3DType Wt::Chart::WAbstractGridData::type ( ) const
virtual

Returns the type of representation that will be used for the data.

See also
setType()
void Wt::Chart::WAbstractGridData::updateGL ( )
virtual

Update GL resources.

This function is called by updateGL() in the chart to which this dataseries was added. Before this function is called, deleteAllGLResources() is called.

See also
deleteAllGLResources()

Implements Wt::Chart::WAbstractDataSeries3D.


Generated on Mon Sep 4 2017 for the C++ Web Toolkit (Wt) by doxygen 1.8.11
